Two-Axis Spring-Assist Torque Hinge
HG-TAJ40SC20

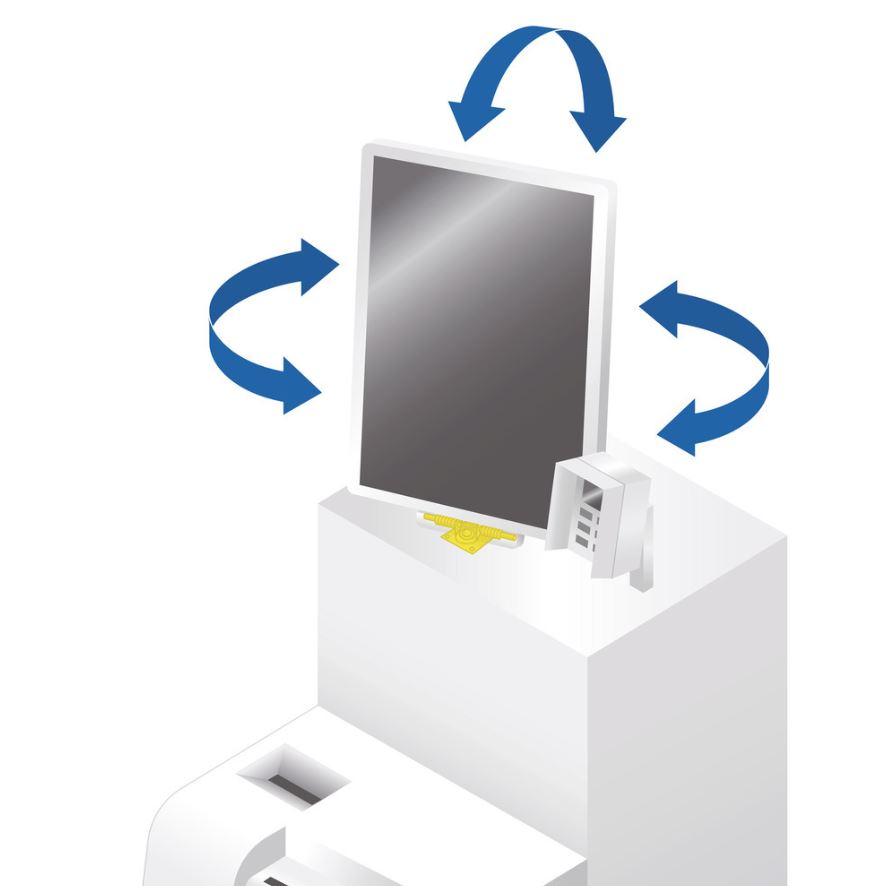

- Position at any angle in both the tilt and swivel direction
- Tilt direction rotates up to 120°, and a spring-assisted torque makes the upward opening feel lighter

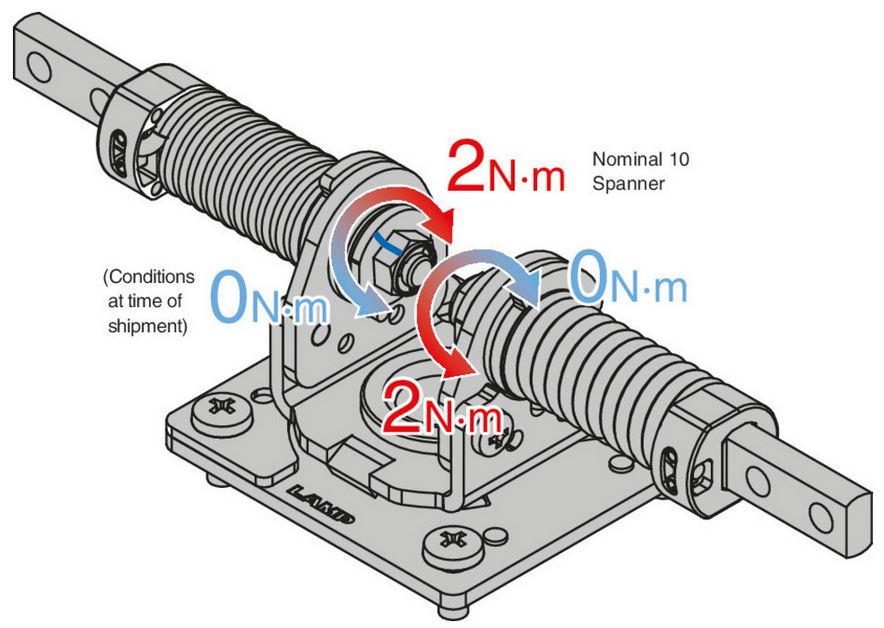

- Retaining torque in the tilt direction is adjustable (0 to 4 N·m)
- The rotation direction rotates ±180°, and it is temporarily kept in position at 0°, ±90°, ±180°. Friction is designed to be generated at the angle without detent, this allows for stable movement
- With the optional plate, you can limit the rotation angle to ±90°
- Centre hole for cable management
- Tilt: Passed 50,000 open/close cycle test
- Swivel: Passed 20,000 open/close cycle test
| Part No. | Description | Tilt Retaining Torque (N.m) | Tilt Assist Torque (N.m) | Swivel Release Torque (N.m) | Swivel Torque (N.m) | CAD | Quantity | |
| HG-SC-ST | Optional 90° Angle Plate | - | - | - | - | Download |
|
|
| HG-TAJ40SC20 | Main Body | 3.5 ~ 4.5 | 0 ~ 4.5 | 3.5 | 2.0 | Download |
|
