SOUTHCO

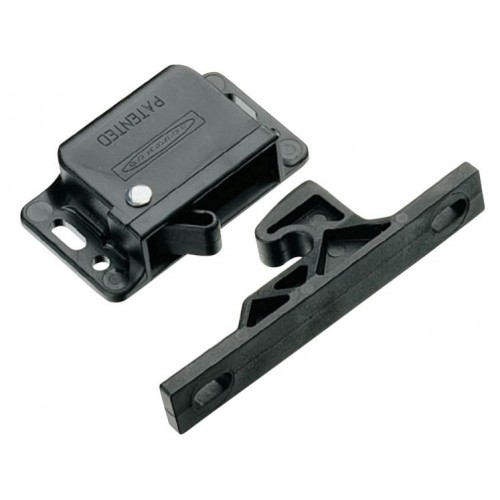

Push-to-Close Grabber Catch (Side Mount)
C3
Get an extra degree of closure force on doors, with this compact latch's internal spring-loaded pawl that provides over-center latching. The built-in pull-up provides tension to help prevent looseness or rattle of the door against the frame.
- Latching function is accomplished in a relatively low-profile mechanism, just 13.7 mm (.54") thick
- Over-center action actually pulls door tighter to latch, releasing it when you pull to open door
- Latches can be mounted in any orientation; catch and keeper are marked to match proper orientation
- Three choices of consistent pull-up forces: 13 N, 22 N, and 44 N
- Made of corrosion-resistant materials
| Part No. | Pull Up Force | CAD | Quantity | |
| C3-803 | 13 N | Download |
|
|
| C3-805 | 22 N | Download |
|
|
| C3-810 | 44 N | Download |
|
