GRIPWELL

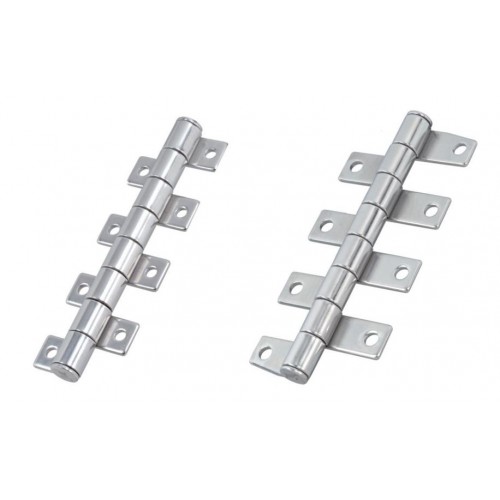

Stainless Steel 316 Seam Friction Hinge
GM-SFH
- Designed to hold door open without any torque adjustment
- Stainless steel 316 construction suitable for corrosive environments, passed 500 hours salt spray test
- Ideal for light weight doors, such as overhead door, glove box, electrical panel, equipment doors, etc.
- Passed 10,000 and 20,000 life cycle test with minimal loss of torque
| Part No. | Size | Torque (N.m) | CAD | Quantity | |
| GM-SFH-A419619 | Small | 1.9 ± 0.4 | Request |
|
|
| GM-SFH-A419620 | Small | 3.1 ± 0.6 | Request |
|
|
| GM-SFH-A419621 | Small | 4.1 ± 0.7 | Request |
|
|
| GM-SFH-A419622 | Small | 5.3 ± 0.8 | Request |
|
|
| GM-SFH-A419623 | Large | 2.0 ± 0.5 | Request |
|
|
| GM-SFH-A419625 | Large | 3.2 ± 0.6 | Request |
|
|
| GM-SFH-A419626 | Large | 4.3 ± 0.7 | Request |
|
|
| GM-SFH-A419629 | Large | 5.4 ± 0.7 | Request |
|
