SUGATSUNE

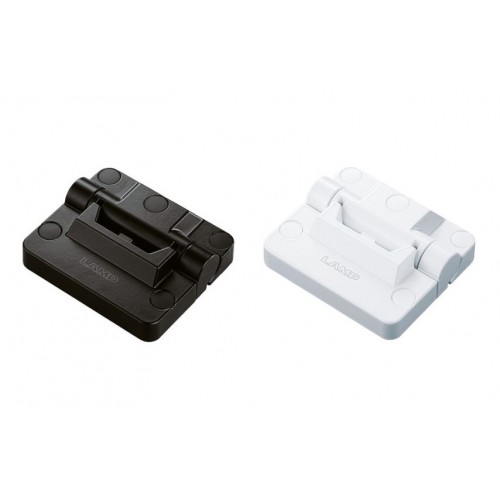

Damper Torque Hinge
HG-TQJD
- Torque hinge with damper

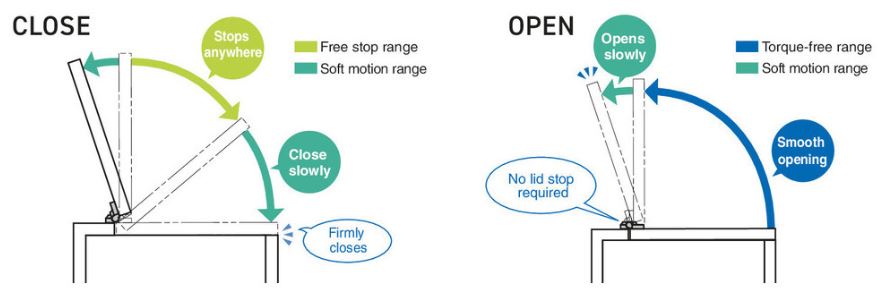

- Torque adjustment feature enables lids and doors to stop at any position during opening or closing
- Torque is generated in one direction, almost no reverse torque is generated, allowing for smooth operation
- Lid stop not required
- Passed 20,000 cycle test
| Part No. | Mounting | Colour | Opening Angle | Max Moment (N.m) | CAD | Quantity | |

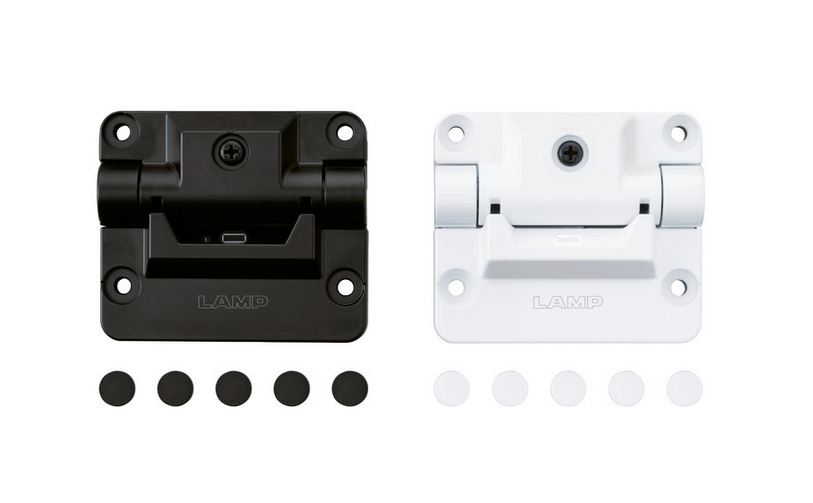

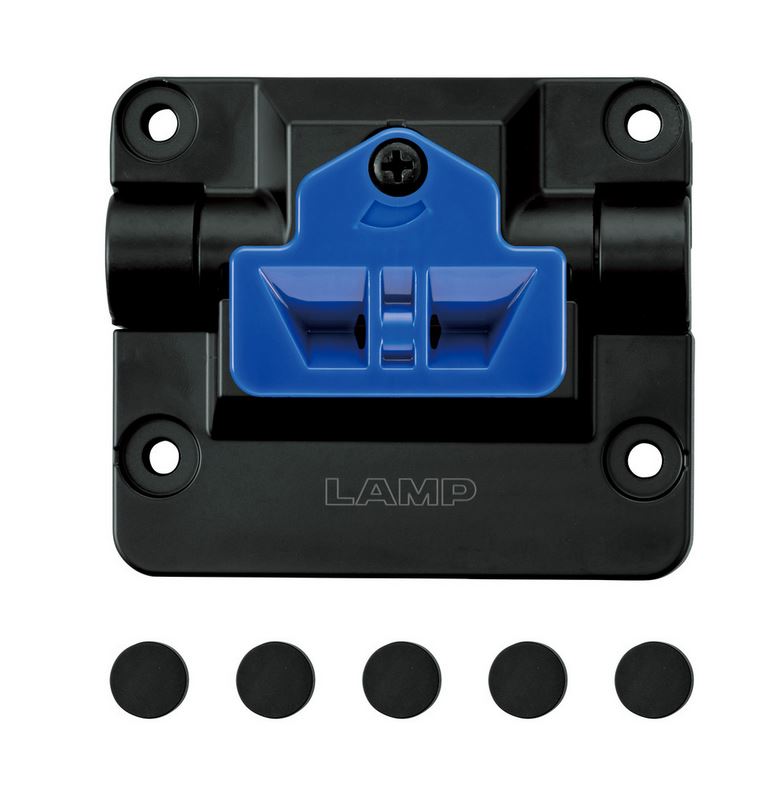

| HG-TQJD50-A-BL | External | Black | 110° | 2.0 ~ 5.0 | Download |
|
|

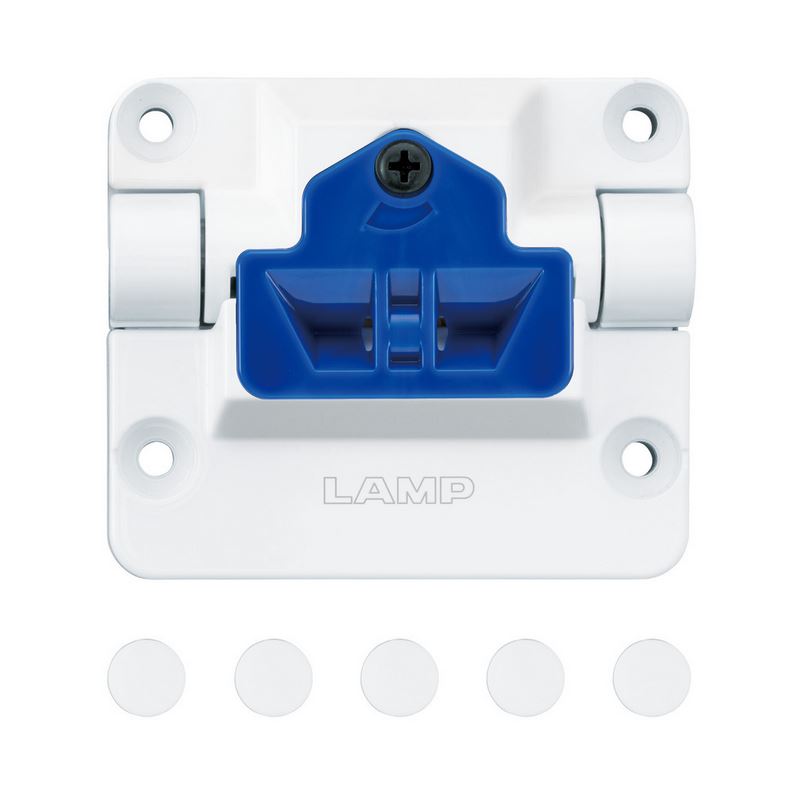

| HG-TQJD50-A-WT | External | White | 110° | 2.0 ~ 5.0 | Download |
|
|
| HG-TQJD50-B-BL | Internal | Black | 100° | 2.0 ~ 5.0 | Download |
|
|
| HG-TQJD50-B-WT | Internal | White | 100° | 2.0 ~ 5.0 | Download |
|
