Combination Hinge
Combination Hinge
Combination Hinge

GRIPWELL

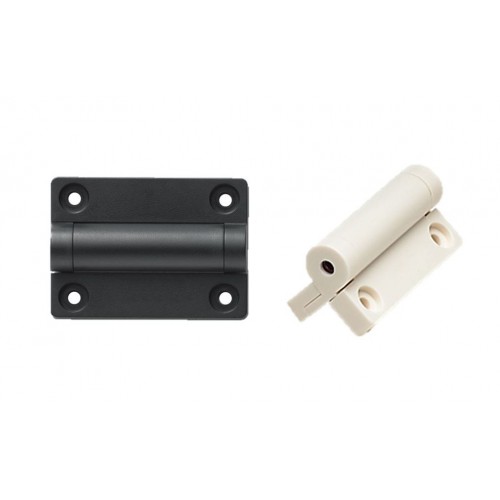

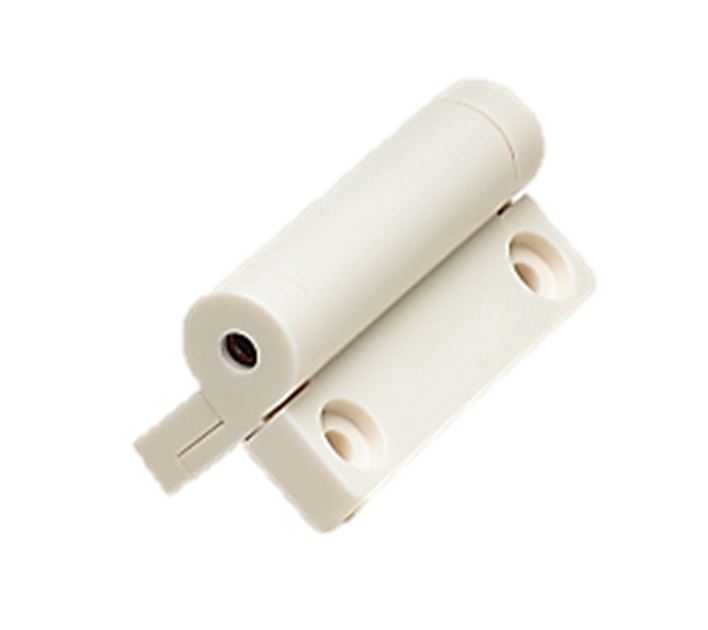

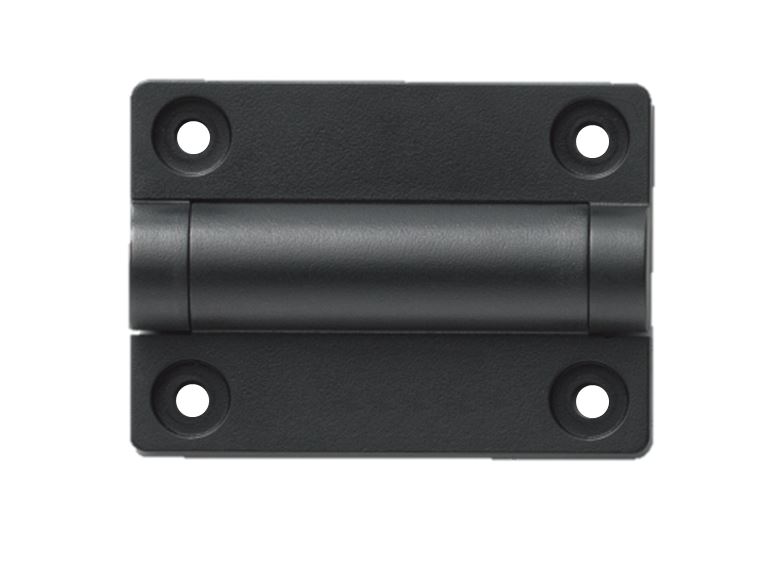

Combination Hinge

GHG-VH8


  • Modular hinges with built-in damper, spring or torque
  • Various motion types (soft-close, self-opening, etc.) can be achieved with combined use of available hinge types
  • For hinges with built-in springs, the spring tension can be adjusted with a hex key
  • Passed 50,000 life cycle test

Part No. Description Type Colour Torque (N.m) CAD Quantity
GHG-VH8-CL-BL Spring (Self-Closing) Black 0 ~ 0.061 Download
GHG-VH8-CL-WT Spring (Self-Closing) White 0 ~ 0.061 Download
GHG-VH8-D3-BL Damper Black 0.022 ~ 0.038 Download
GHG-VH8-D3-WT Damper White 0.022 ~ 0.038 Download
GHG-VH8-N-BL Free Swinging Black - Download
GHG-VH8-N-WT Free Swinging White - Download
GHG-VH8-OP-BL Spring (Self-Opening) Black 0 ~ 0.061 Download
GHG-VH8-OP-WT Spring (Self-Opening) White 0 ~ 0.061 Download
GHG-VH8-T15-BL Torque Black 0.15 ± 0.05 Download
GHG-VH8-T15-WT Torque White 0.15 ± 0.05 Download
GHG-VH8-T35-BL Torque Black 0.35 ± 0.1 Download
GHG-VH8-T35-WT Torque White 0.35 ± 0.1 Download
