GRIPWELL

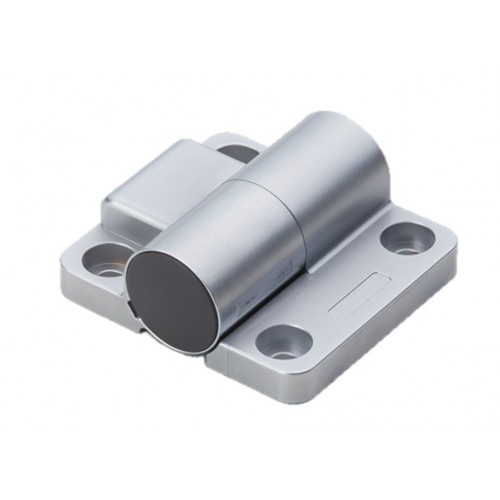

Adjustable One Way Torque Hinge
GHG-TQJ
- Friction in one direction only, allows for frictionless handling of the door in the opposite direction
- Torque adjustable from 0 to 10 N.m
- High stable torque type with max. torque up to 10 N.m
- Two types available (friction in opening direction or in closing direction)
- Cover attached to torque adjustment portion for clean appearance
- Passed 20,000 life cycle test
| Part No. | Type | Torque (N.m) | Torque (kgf.cm) | CAD | Quantity | |
| GHG-TQJ100-A | Torque in Opening Direction | 0 ~ 10 | 0 ~ 102 | Download |
|
|
| GHG-TQJ100-B | Torque in Closing Direction | 0 ~ 10 | 0 ~ 102 | Download |
|
