SUGATSUNE

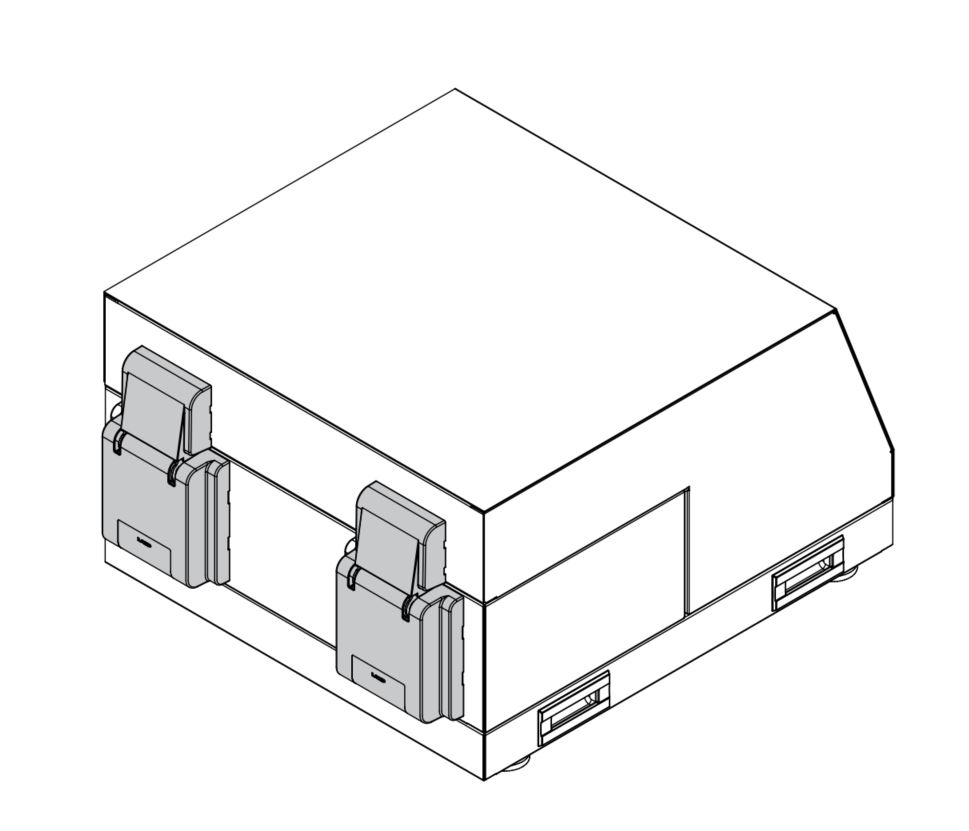

Lift Assist Hinge (Rear External Mount)
HG-PA272

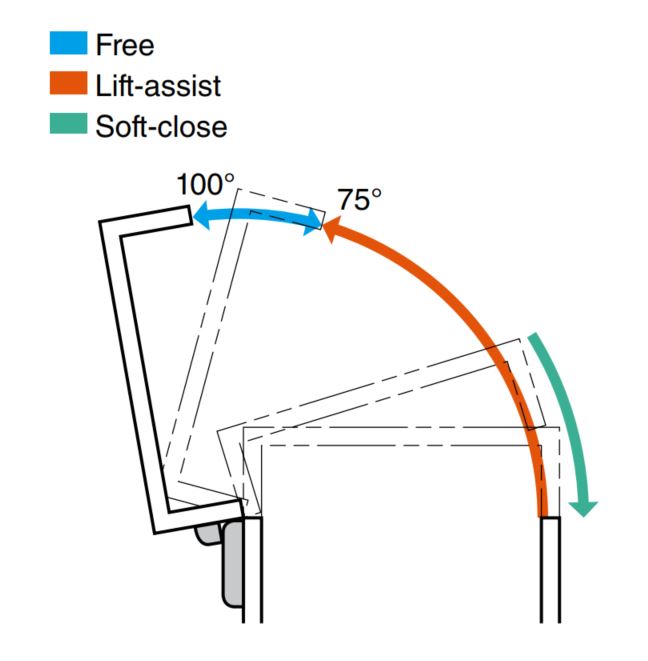

- Lift assist: Easy to lift heavy top-opening lids due to spring tension
- Soft close: Built-in damper prevents lids from slamming shut
- Torque is adjustable by turning the adjustment screw (± 5%)
- Comes with a cover to hide the mounting screws
- Designed for use under the condition that lid’s centre of gravity is at a higher position than the rotational centre (angle of torque peak is about 20°)
| Part No. | Torque (N.m) | Torque (kgf.cm) | CAD | Quantity | |
| HG-PA272-35 | 35 | 357 | Download |
|
|
| HG-PA272-50 | 50 | 510 | Download |
|
