GRIPWELL

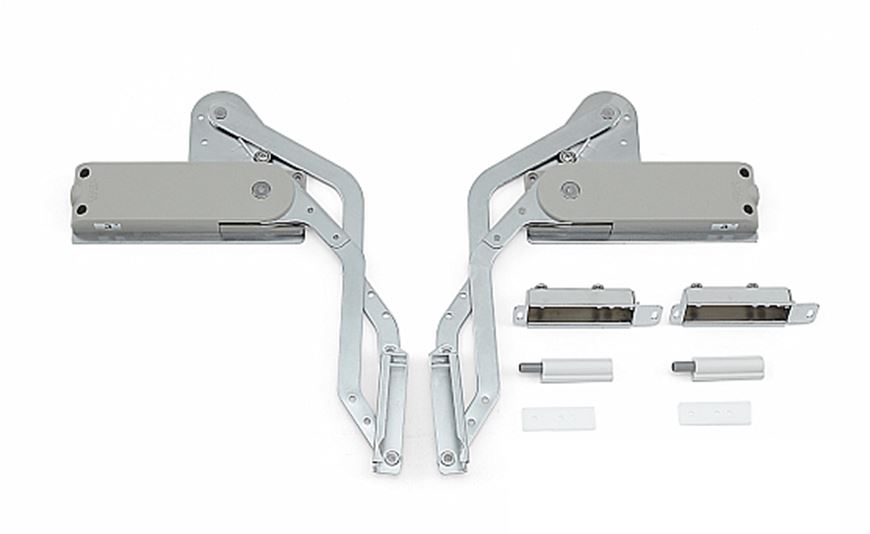

Swing Lift-Up Stay
GSLUN
- Patented mechanism helps open and close door smoothly
- Spring mechanism assists opening the door lightly when it is opened outwards by 50 ~ 70 mm
- Damper provides smooth and soft closing

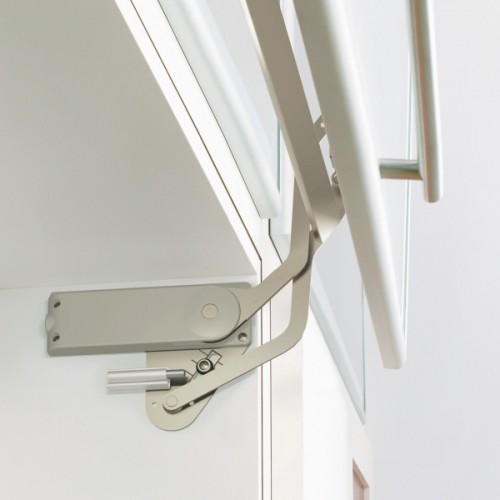

- Installed on the bottom of cabinet top board for maximum space inside the cabinet
- Passed 40,000 life cycle test
| Part No. | Description | Door Weight (kg) | Length (mm) | CAD | Quantity | |
| GSLUB-535 | Connecting Bar | - | 535 | Request |
|
|
| GSLUB-551 | Connecting Bar | - | 551 | Request |
|
|
| GSLUB-835 | Connecting Bar | - | 835 | Request |
|
|
| GSLUB-851 | Connecting Bar | - | 851 | Request |
|
|
| GSLUN-3N | Main Body | 2.8 ~ 3.8 | - | Download |
|
|
| GSLUN-4N | Main Body | 3.8 ~ 4.8 | - | Download |
|
|
| GSLUN-5N | Main Body | 4.8 ~ 5.8 | - | Download |
|
