GRIPWELL

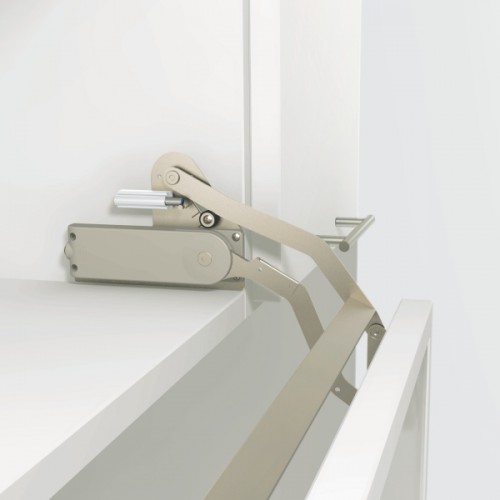

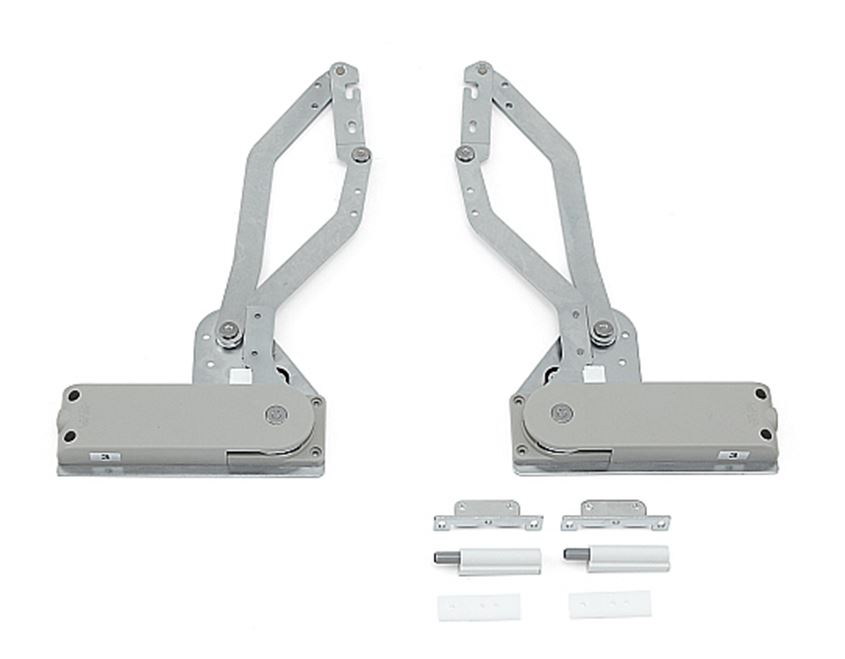

Swing Lift-Down Stay
GSLD
- Patented mechanism helps open and close door smoothly
- Unique swing down mechanism holds the door in fully opened position
- Damper provides smooth and soft closing
- Installed on the top of cabinet bottom board for maximum space inside the cabinet
- Passed 30,000 life cycle test
| Part No. | Description | Door Weight (kg) | Length (mm) | CAD | Quantity | |
| GSLD-3 | Main Body | 3 ~ 4 | - | Download |
|
|
| GSLD-4 | Main Body | 4 ~ 5 | - | Download |
|
|
| GSLD-5 | Main Body | 5 ~ 6 | - | Download |
|
|
| GSLUB-535 | Connecting Bar | - | 535 | Request |
|
|
| GSLUB-551 | Connecting Bar | - | 551 | Request |
|
|
| GSLUB-835 | Connecting Bar | - | 835 | Request |
|
|
| GSLUB-851 | Connecting Bar | - | 851 | Request |
|
