GRIPWELL

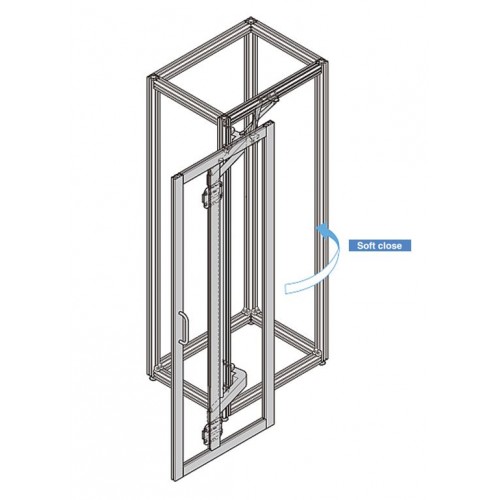

Lateral Swing Door System (For Large Sized Doors)
GFAD-44
- Door can be installed in a narrow space and does not get in the way when opened
- For contiguous cabinets, door will be flush with the front of the adjacent cabinets, creating flat and clean appearance
- Smooth and soft closing
- Smaller locus maximises space in front of door
- Possible to combine in double doors
- No bottom rail required
- Door height can be set by cutting the arm connecting pipe
- Holds door in fully opened and closed position
- Door adjustable in vertical (-3 ~ +7mm), horizontal (±7mm), depth and parallel directions
- Passed 20,000 open/close cycle test
| Part No. | Door Height | CAD | Quantity | |
| GFAD-44 | Max. 2380 | Download |
|
|
| GFAD-44L | Max. 2980 | Download |
|
