GRIPWELL

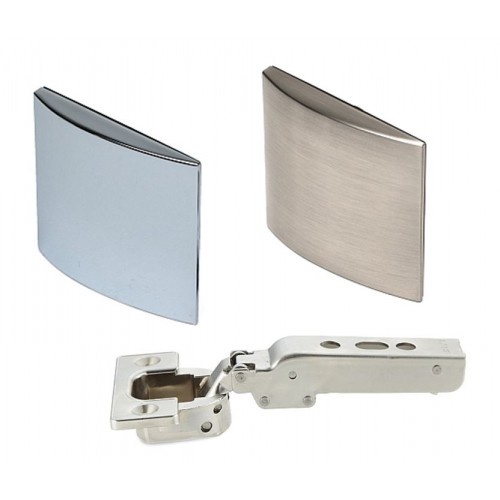

Heavy Duty Concealed Hinge (With Glass Door Face Plate)
GJ95
- Heavy duty concealed hinge for sheet metal or glass doors
- Strong loading allows fewer quantity of required hinges compared to normal concealed hinges, ensuring reduction in installation time and a cleaner appearance
- Simple installation and detachment with single touch
- Adjustable in various directions (depth, vertical, horizontal, tilting)
- Can be installed on sheet metal or glass doors, face plates also available for glass door
| Part No. | Description | Type | Finish | CAD | Quantity | |
| GGH-J95FP-CR | Face Plate for Glass Door | - | Chrome | Download |
|
|
| GGH-J95FP-SN | Face Plate for Glass Door | - | Satin Nickel | Download |
|
|
| GJ95-24/0T | Hinge (Inset) | Without Catch | Nickel | Download |
|
|
| GJ95-24/0T-BN | Hinge (Inset) | Without Catch | Black Nickel | Download |
|
|
| GJ95-24/16T | Hinge (12 ~ 16 mm Overlay) | Without Catch | Nickel | Download |
|
|
| GJ95-24/16T-BN | Hinge (12 ~ 16 mm Overlay) | Without Catch | Black Nickel | Download |
|
|
| GJ95-24/25T | Hinge (21 ~ 25 mm Overlay) | Without Catch | Nickel | Download |
|
|
| GJ95-24/25T-BN | Hinge (21 ~ 25 mm Overlay) | Without Catch | Black Nickel | Download |
|
|
| GJ95-C24/0T | Hinge (Inset) | With Catch | Nickel | Download |
|
|
| GJ95-C24/0T-BN | Hinge (Inset) | With Catch | Black Nickel | Download |
|
|
| GJ95-C24/16T | Hinge (12 ~ 16 mm Overlay) | With Catch | Nickel | Download |
|
|
| GJ95-C24/16T-BN | Hinge (12 ~ 16 mm Overlay) | With Catch | Black Nickel | Download |
|
|
| GJ95-C24/25T | Hinge (21 ~ 25 mm Overlay) | With Catch | Nickel | Download |
|
|
| GJ95-C24/25T-BN | Hinge (21 ~ 25 mm Overlay) | With Catch | Black Nickel | Download |
|
|
| GJ95-P6T | Mounting Plate | - | Nickel | Download |
|
|
| GJ95-P6T-BN | Mounting Plate | - | Black Nickel | Download |
|
|
| GJ95SC-0GR | Safety Cover (for GJ95-0T) | - | Nickel | Download |
|
|
| GJ95SC-0NI | Safety Cover (for GJ95-0T) | - | Black Nickel | Request |
|
|
| GJ95SC-16GR | Safety Cover (for GJ95-16T) | - | Grey | Download |
|
|
| GJ95SC-16NI | Safety Cover (for GJ95-16T) | - | Nickel | Download |
|
|
| GJ95SC-25GR | Safety Cover (for GJ95-25T) | - | Grey | Download |
|
|
| GJ95SC-25NI | Safety Cover (for GJ95-25T) | - | Nickel | Download |
|
|
| GJ95ZC-GR | Cover for Mounting Plate | - | Grey | Download |
|
|
| GJ95ZC-NI | Cover for Mounting Plate | - | Nickel | Download |
|
