GRIPWELL

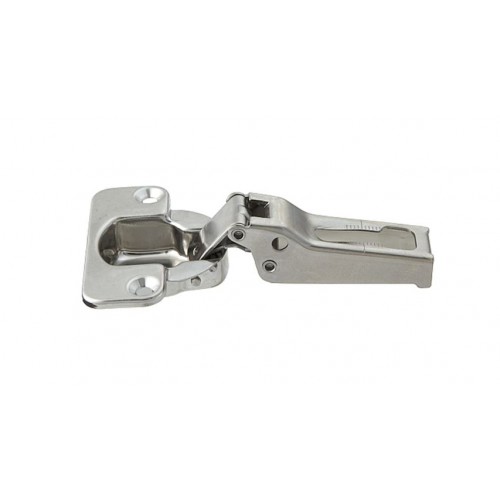

Stainless Steel Concealed Hinge (100⁰ Opening)
G100
- Stainless steel concealed hinge
- 100⁰ opening
- Passed 40,000 life cycle test
| Part No. | Description | Type | CAD | Quantity | |
| G100-46/14SUS304B | Hinge (10 ~ 14 mm Overlay) | Without Catch | Download |
|
|
| G100-46/19SUS304B | Hinge (15 ~ 19 mm Overlay) | Without Catch | Download |
|
|
| G100-46/9SUS304B | Hinge (5 ~ 9 mm Overlay) | Without Catch | Download |
|
|
| G100-C46/14SUS304B | Hinge (10 ~ 14 mm Overlay) | With Catch | Download |
|
|
| G100-C46/19SUS304B | Hinge (15 ~ 19 mm Overlay) | With Catch | Download |
|
|
| G100-C46/9SUS304B | Hinge (5 ~ 9 mm Overlay) | With Catch | Download |
|
|
| G100-P3A-SUS304 | Mounting Plate | - | Download |
|
|
| G100-P4A-32-SUS304 | Mounting Plate | - | Download |
|
|
| G100-P4A/32-3WAY-SUS304 | Mounting Plate | - | Request |
|
