GRIPWELL

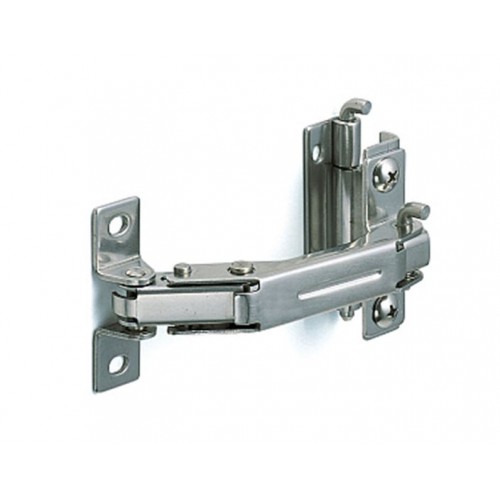

Concealed Hinge
GHG-YS65C
- Combination of hinge and stay
- Stay with catch holds door in opened position
- Catch is of a spring type: when door is pushed with a stronger force, the spring extends and the catch is released
- Non-handed
- Removable pin allows easy door installation and removal
| Part No. | Max. Door Weight (Per Pair) | Retaining Torque (Per Piece) | CAD | Quantity | |
| GHG-YS65C | Approx. 10 kg | Approx. 30 kgf.cm | Download |
|
