GRIPWELL

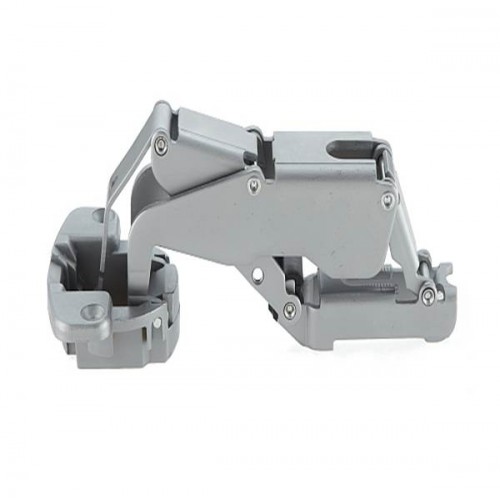

Concealed Hinge (160⁰ Opening)
GH160
- Steel, satin chrome finish concealed hinge
- 160⁰ opening
- Passed 40,000 life cycle test
| Part No. | Description | Type | CAD | Quantity | |
| G100-01 | Mounting Plate | - | Download |
|
|
| G100-02-30 | Mounting Plate | - | Download |
|
|
| G100-02A-30 | Mounting Plate | - | Download |
|
|
| G100-03 | Mounting Plate | - | Download |
|
|
| G100-03A | Mounting Plate | - | Download |
|
|
| G100-04-30 | Mounting Plate | - | Download |
|
|
| G100-04A-30 | Mounting Plate | - | Download |
|
|
| G100-04A-32-3 | Mounting Plate | - | Download |
|
|
| G100-04A-W-30 | Mounting Plate | - | Download |
|
|
| G100-04A-W-30-2 | Mounting Plate | - | Download |
|
|
| G100-04A-W-32 | Mounting Plate | - | Download |
|
|
| G100-04W-30 | Mounting Plate | - | Download |
|
|
| G100-06 | Mounting Plate | - | Download |
|
|
| G100-06A | Mounting Plate | - | Download |
|
|
| G100-06AW | Mounting Plate | - | Download |
|
|
| G100-P3A | Mounting Plate | - | Download |
|
|
| G100-P4A-30 | Mounting Plate | - | Download |
|
|
| G100-P6 | Mounting Plate | - | Download |
|
|
| GH160-34/0 | Hinge (Inset) | Without Catch | Download |
|
|
| GH160-34/18 | Hinge (9 ~ 18 mm Overlay) | Without Catch | Download |
|
|
| GH160-34/23 | Hinge (14 ~ 23 mm Overlay) | Without Catch | Download |
|
|
| GH160-34/28 | Hinge (19 ~ 28 mm Overlay) | Without Catch | Download |
|
|
| GH160-C34/0 | Hinge (Inset) | With Catch | Download |
|
|
| GH160-C34/18 | Hinge (9 ~ 18 mm Overlay) | With Catch | Download |
|
|
| GH160-C34/23 | Hinge (14 ~ 23 mm Overlay) | With Catch | Download |
|
|
| GH160-C34/28 | Hinge (19 ~ 28 mm Overlay) | With Catch | Download |
|
