GRIPWELL

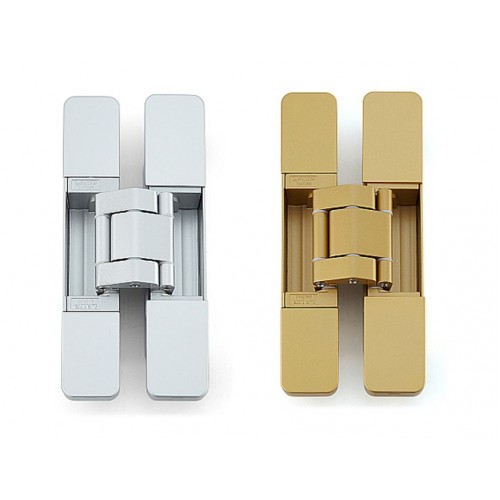

3-Way Adjustable Concealed Hinge
GHES3D-160
- Small bore depth for compact assembly
- 3-way adjustment function allows vertical, horizontal, and depth adjustment after hinge installation
- Easy installation: hinge can be split into the door side and the frame side and has temporary door holding feature
- Unique seven link structure helps to prevent door from sagging
- Can be used in combination with door damper / door closers
| Part No. | Colour | Door Width | Door Height | Door Thickness | Door Weight (2 pcs) | Door Weight (3 pcs) | CAD | Quantity | |
| GHES3D-160GL | Gold | Max. 900 | Max. 2400 | Min. 35 | Max. 45 kg | Max. 60 kg | Download |
|
|
| GHES3D-160SL | Silver | Max. 900 | Max. 2400 | Min. 35 | Max. 45 kg | Max. 60 kg | Download |
|
