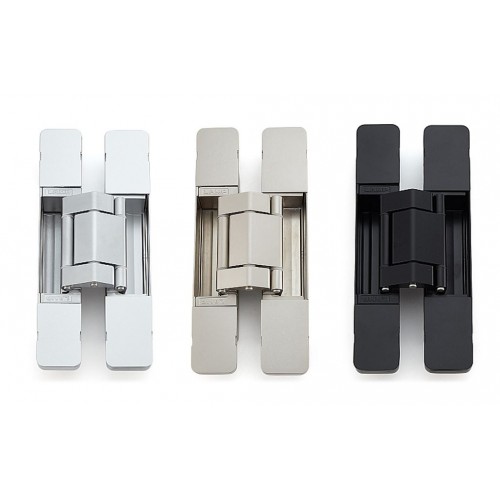

3-Way Adjustable Concealed Hinge
GHES3D-E190
- Small bore depth for compact assembly
- 3-way adjustment function allows vertical, horizontal, and depth adjustment after hinge installation
- Easy installation: hinge can be split into the door side and the frame side and has temporary door holding feature
- Unique seven link structure helps to prevent door from sagging
- Bracket available for sheet metal installation
- Custom colours available on request
- Can be used in combination with door damper / door closers
| Part No. | Description | Colour | Door Width | Door Height | Door Thickness | Door Weight (2 pcs) | Door Weight (3 pcs) | CAD | Quantity | |
| GHES3D-E190BKT-D | Sheet Metal Bracket (Door) | - | - | - | - | - | - | Download |
|
|
| GHES3D-E190BKT-F | Sheet Metal Bracket (Frame) | - | - | - | - | - | - | Download |
|
|
| GHES3D-E190BL | Hinge | Black | Max. 900 | Max. 2400 | Min. 38 | Max. 100 kg | Max. 125 kg | Download |
|
|
| GHES3D-E190DC | Hinge | Silver | Max. 900 | Max. 2400 | Min. 38 | Max. 100 kg | Max. 125 kg | Download |
|
|
| GHES3D-E190DN | Hinge | Champagne Gold | Max. 900 | Max. 2400 | Min. 38 | Max. 100 kg | Max. 125 kg | Download |
|
