GRIPWELL

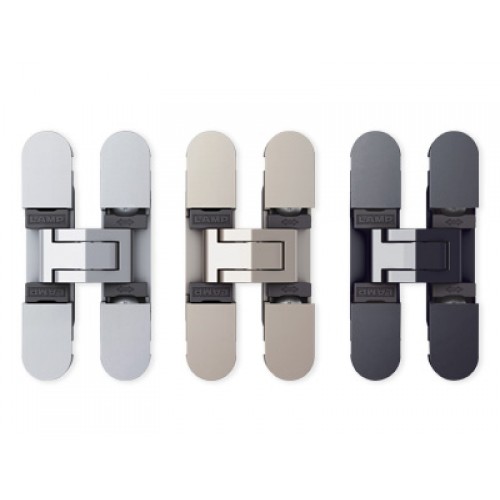

3-Way Adjustable Concealed Hinge
GHES3D-70
- Small bore depth, easy to cut out the door and frame
- 3-way adjustment function allows vertical, horizontal, and depth adjustment after hinge installation
- Hinge can be split into the door side and the frame side
| Part No. | Colour | Door Width | Door Height | Door Thickness | Door Weight (2 pcs) | Door Weight (3 pcs) | CAD | Quantity | |
| GHES3D-70BL | Black | Max. 600 | Max. 1200 | Min. 19 | Max. 9 kg | Max. 12 kg | Download |
|
|
| GHES3D-70DC | Silver | Max. 600 | Max. 1200 | Min. 19 | Max. 9 kg | Max. 12 kg | Download |
|
|
| GHES3D-70DN | Champagne Gold | Max. 600 | Max. 1200 | Min. 19 | Max. 9 kg | Max. 12 kg | Download |
|
