GRIPWELL

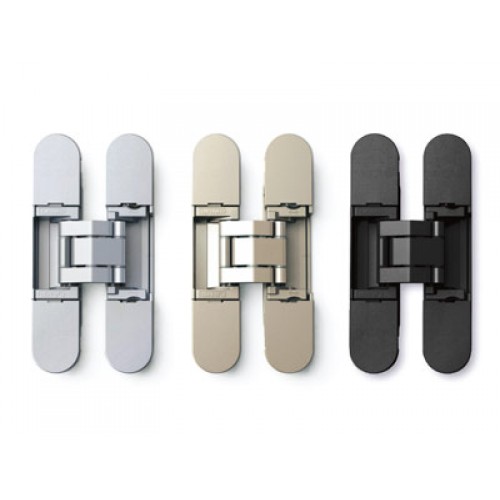

3-Way Adjustable Concealed Hinge
GHES3D-90
- Small bore depth, easy to cut out the door and frame
- 3-way adjustment function allows vertical, horizontal, and depth adjustment after hinge installation
- Hinge can be split into the door side and the frame side
- Unique seven link structure helps to prevent door from sagging
- Bracket available for glass door installation
- Custom colours available on request
| Part No. | Description | Colour | Door Width | Door Height | Door Thickness | Door Weight (2 pcs) | Door Weight (3 pcs) | CAD | Quantity | |
| GHES3D-90BL | Hinge | Black | Max. 600 | Max. 1500 | Min. 23 | Max. 12 kg | Max. 16 kg | Download |
|
|
| GHES3D-90DC | Hinge | Silver | Max. 600 | Max. 1500 | Min. 23 | Max. 12 kg | Max. 16 kg | Download |
|
|
| GHES3D-90DN | Hinge | Champagne Gold | Max. 600 | Max. 1500 | Min. 23 | Max. 12 kg | Max. 16 kg | Download |
|
|
| GHES3D-G90BKT-BL | Glass Door Bracket | Black | - | - | - | - | - | Download |
|
|
| GHES3D-G90BKT-CR | Glass Door Bracket | Silver | - | - | - | - | - | Download |
|
|
| GHES3D-G90BKT-GP | Glass Door Bracket | Gold | - | - | - | - | - | Download |
|
