GRIPWELL

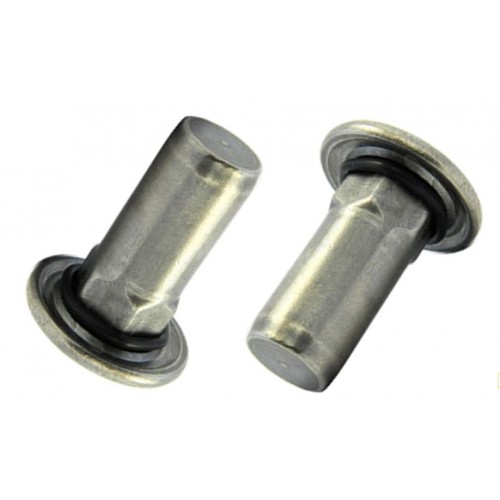

Watertight IP68 Threaded Insert (Steel)
GWST-CHFS68
Underhead seal provides very good protection against ingress of fluids, moisture, oil or dirt even under high pressures up to at least 10 bar, and IP68 proofing
- Head style: Large flange
- Body type: Hexagonal
- End: Closed
- Sizes: M5 - M8
- Material: Steel
- Rating: IP68
| Part No. | Thread Size | Min. Grip | Max. Grip | CAD | Quantity | |
| GWST-CHFS68M5-0530 | M5 | 0.5 | 3.0 | Request |
|
|
| GWST-CHFS68M6-0530 | M6 | 0.5 | 3.0 | Request |
|
|
| GWST-CHFS68M6-3055 | M6 | 3.0 | 5.5 | Request |
|
|
| GWST-CHFS68M8-0530 | M8 | 0.5 | 3.0 | Request |
|
|
| GWST-CHFS68M8-3060 | M8 | 3.0 | 6.0 | Request |
|
|
| GWST-CHFS68M8-6080 | M8 | 6.0 | 8.0 | Request |
|
