AVDEL

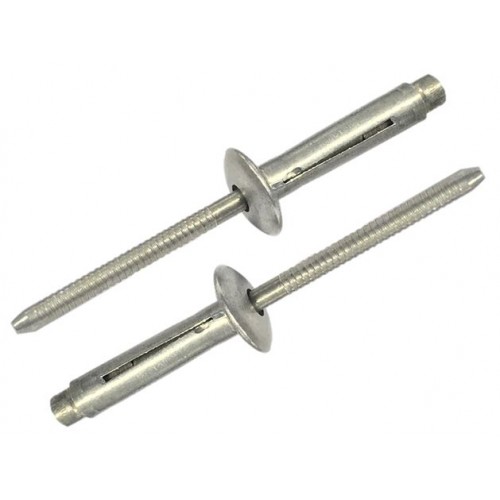

Klamp-Tite (Aluminium, Dome)
BAPKTR
The structural version of our Klamp-Tite rivet, featuring a visible mechanical lock to give extra strength to the joint. An ideal rivet for use in thin sheet or low strength materials because of its large blind-side bearing area. Made of aluminum alloy, and available with an optional under head washer provides a weather-proof seal. Assembly applications include domestic appliances, plastic components, automotive plastic assemblies, container, cladding, and commercial vehicles.
- Head style: Dome
- Body material: Aluminium
- Stem material: Aluminium
- Type: Multi-grip
- Sizes: 4.8 mm (3/16″) - 6.4 mm (1/4″)
| Part No. | Size ⌀ | Min. Grip | Max. Grip | CAD | Quantity | |
| BAPKTR-06-04 | 4.8 (3/16″) | 1.27 | 6.35 | - |
|
|
| BAPKTR-06-06 | 4.8 (3/16″) | 4.75 | 9.53 | - |
|
|
| BAPKTR-06-09 | 4.8 (3/16″) | 9.53 | 14.27 | - |
|
|
| BAPKTR-06-12 | 4.8 (3/16″) | 14.27 | 19.05 | - |
|
|
| BAPKTR-08-04 | 6.4 (1/4″) | 1.52 | 6.35 | - |
|
|
| BAPKTR-08-06 | 6.4 (1/4″) | 4.75 | 9.53 | - |
|
