GRIPWELL

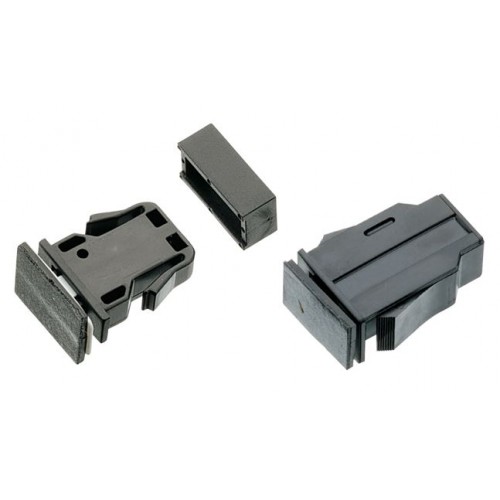

Push-to-Close Touch Latch
E4
Fully concealed installation and simple spring-actuated engagement make it as easy to design an attractive enclosure as it is easy to install and operate the latch. Latch body simply snaps into frame. Open or close the latch with just a touch of a finger on the front of the door panel.
- Simple installation, latch snaps into single hole on frame
- Versatile spacer installation enables a single latch to accommodate multiple panel thicknesses
- Retractable catch points built into the latch close around the keeper as the latch is pushed closed; then a simple push on the door releases them to pop the door open
| Part No. | Type | Frame Thickness | Spacer Thickness | CAD | Quantity | |
| E4-10-101-10 | Small | 8.1 - 8.6 | - | Download |
|
|
| E4-10-102-10 | Small | 0.8 - 1.0 / 1.4 - 1.7 | 7.5 | Download |
|
|
| E4-10-103-10 | Small | 1.8 - 2.0 / 2.9 - 3.2 | 6.5 | Download |
|
|
| E4-10-104-10 | Small | 4.6 - 4.9 / 6.2 - 6.5 | 3.6 | Download |
|
|
| E4-10-201-10 | Large | 1.0 - 3.0 | - | Download |
|
|
| E4-10-202-10 | Large | 3.0 - 5.0 | - | Download |
|
|
| E4-10-203-10 | Large | 5.0 - 7.0 | - | Download |
|
