GRIPWELL

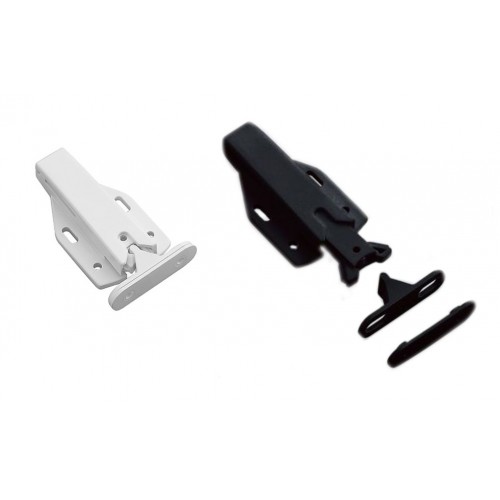

Long Stroke Touch Latch
GMLC-100
- Long stroke
- No handle needed, just push to open/close
- Non magnetic
- Lightly push to open the door. When closing, arm will catch the counter plate and hold the door with a light push
- Wide tolerance / adjustment range: ±2 mm vertically and ±3.5 mm horizontally
- Passed 100,000 life cycle test
| Part No. | Colour | Retaining Force (kg) | Push Force (kg) | CAD | Quantity | |
| GMLC-100BL | Black | 9.2 | 1.4 | Download |
|
|
| GMLC-100WT | White | 9.2 | 1.4 | Download |
|
