SOUTHCO

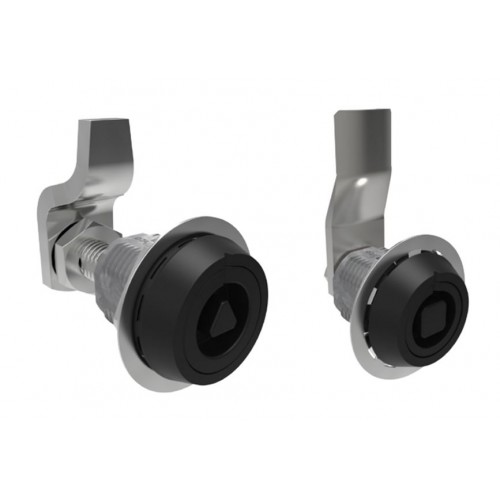

Vise Action Compression Latch (Compact - Steel, Zinc)
E3-C
Designed for quick, secure closure in applications where vibration, sealing, and quality are paramount. The original Southco VISE ACTION latching mechanism combines with numerous body and head styles designed to suit specific installation and application requirements.
- Compact version, minimal panel intrusion
- Adjustable or fixed grip, 19.1 mm size
- Tool operated
- Consistent pre-set compression
- NEMA 4 and IP65 enabled using gasket supplied
| Part No. | Description | Rotation | Head Style | Grip Type | Finish | CAD | Quantity | |
| E3-28-201-12 | Cam Pawl | - | - | - | - | Request |
|
|
| E3-28-202-12 | Cam Pawl | - | - | - | - | Request |
|
|
| E3-28-203-12 | Cam Pawl | - | - | - | - | Request |
|
|
| E3-C110-01 | Latch Body | Clockwise | Square (8 mm) | Adjustable | Black Powder Coated | Download |
|
|
| E3-C110-05 | Latch Body | Clockwise | Square (8 mm) | Adjustable | Black Powder Coated | Download |
|
|
| E3-C111-01 | Latch Body | Clockwise | Railway | Adjustable | Black Powder Coated | Download |
|
|
| E3-C111-05 | Latch Body | Clockwise | Railway | Adjustable | Black Powder Coated | Download |
|
|
| E3-C115-01 | Latch Body | Clockwise | Bellcore 216 | Adjustable | Black Powder Coated | Download |
|
|
| E3-C115-05 | Latch Body | Clockwise | Bellcore 216 | Adjustable | Black Powder Coated | Download |
|
|
| E3-C120-01 | Latch Body | Clockwise | Triangle (8 mm) | Adjustable | Black Powder Coated | Download |
|
|
| E3-C120-05 | Latch Body | Clockwise | Triangle (8 mm) | Adjustable | Black Powder Coated | Download |
|
|
| E3-C1210-UU5 | Latch Body | Clockwise | Square (8 mm) | Fixed | Black Powder Coated | Download |
|
|
| E3-C1211-UU5 | Latch Body | Clockwise | Railway | Fixed | Black Powder Coated | Request |
|
|
| E3-C1215-UU5 | Latch Body | Clockwise | Bellcore 216 | Fixed | Black Powder Coated | Download |
|
|
| E3-C1220-UU5 | Latch Body | Clockwise | Triangle (8 mm) | Fixed | Black Powder Coated | Download |
|
|
| E3-C123-UU5 | Latch Body | Clockwise | Triangle (7 mm) | Fixed | Black Powder Coated | Download |
|
|
| E3-C124-UU5 | Latch Body | Clockwise | Square (7 mm) | Fixed | Black Powder Coated | Download |
|
|
| E3-C13-01 | Latch Body | Clockwise | Triangle (7 mm) | Adjustable | Black Powder Coated | Download |
|
|
| E3-C13-05 | Latch Body | Clockwise | Triangle (7 mm) | Adjustable | Black Powder Coated | Download |
|
|
| E3-C14-01 | Latch Body | Clockwise | Square (7 mm) | Adjustable | Black Powder Coated | Download |
|
|
| E3-C14-05 | Latch Body | Clockwise | Square (7 mm) | Adjustable | Black Powder Coated | Download |
|
|
| E5-2500 | Cam Pawl | - | - | - | - | Request |
|
|
| E5-2501 | Cam Pawl | - | - | - | - | Request |
|
|
| E5-2502 | Cam Pawl | - | - | - | - | Request |
|
|
| E5-2503 | Cam Pawl | - | - | - | - | Request |
|
|
| E5-2504 | Cam Pawl | - | - | - | - | Request |
|
|
| E5-2505 | Cam Pawl | - | - | - | - | Request |
|
|
| E5-2506 | Cam Pawl | - | - | - | - | Request |
|
|
| E5-2507 | Cam Pawl | - | - | - | - | Request |
|
|
| E5-2508 | Cam Pawl | - | - | - | - | Request |
|
|
| E5-2509 | Cam Pawl | - | - | - | - | Request |
|
|
| E5-2510 | Cam Pawl | - | - | - | - | Request |
|
|
| E5-2511 | Cam Pawl | - | - | - | - | Request |
|
|
| E5-2512 | Cam Pawl | - | - | - | - | Request |
|
|
| E5-2513 | Cam Pawl | - | - | - | - | Request |
|
|
| E5-2514 | Cam Pawl | - | - | - | - | Request |
|
|
| E5-2515 | Cam Pawl | - | - | - | - | Request |
|
|
| E5-2516 | Cam Pawl | - | - | - | - | Request |
|
|
| E5-2517 | Cam Pawl | - | - | - | - | Request |
|
|
| E5-2518 | Cam Pawl | - | - | - | - | Request |
|
|
| E5-2519 | Cam Pawl | - | - | - | - | Request |
|
