GRIPWELL

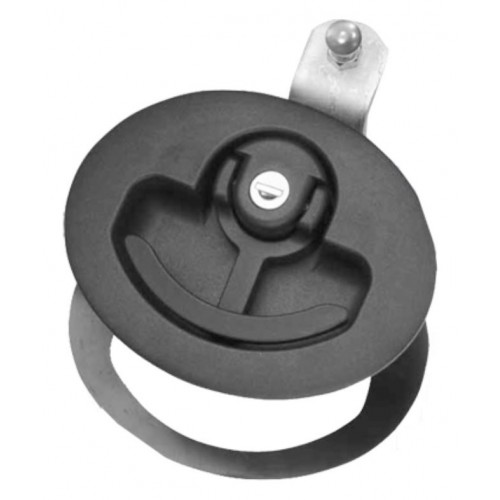

Flush Fit Compression Latch
GC21
- New design in composite materials, providing a well-styled, versatile locking unit
- Fixed invisibly, without ugly bolts or rivets, it allows easy adjustment with the latching point either above or below the handle, and with 6 mm of ‘take-up’ to make an effortless seal against gasketed doors
- Ideal for electrical enclosures and ‘visible’ applications where good appearance is essential
- Water and corrosion resistant, with depth, direction, and ‘throw’ of latch changed quickly and easily to give great range of adjustment
- Simple to fit, with ‘U’-brackets and gasket provided
- Unlock and lift handle, which releases latch bar, and turn to open door. To secure, bring latch to vertical and press down on handle, which compresses bar against door-edge
- Latch travels 90 degrees from centre (rest) position in either direction against ‘stops’. It is not ‘handed’
| Part No. | Key Type | CAD | Quantity | |
| GC21-G03000 | Mixed, Different | Request |
|
|
| GC21-G03000-01 | Standard, FT111 | Request |
|
