GRIPWELL

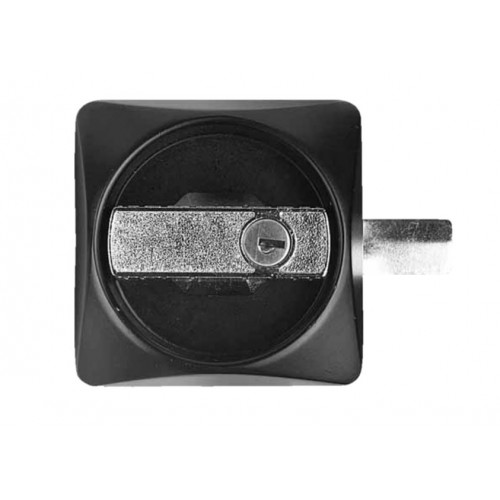

Semi-Flush Recess Latch With Water Sealing
GC20
- Robust, one-piece latch, very easily fitted. Looks good on machinery enclosures, cabinets and inspection panels, providing highly cost-effective alternative to plant-on handles or other flush-latch systems
- Low profile, deep recess for finger-tip action, water-sealed, with concealed fixing. Latch bar accepts rods for 3-way action
- Handle operates latch bar with cam-form allowing 4mm take-up against seals
- Rotation 90°, latch bar can be fixed in-line or at 90⁰ to handle. Totally symmetrical, non-handed
| Part No. | Locking | Key | CAD | Quantity | |
| GC20-G01840 | Yes | Standard | Request |
|
|
| GC20-G01840-1 | Yes | FS880 | Request |
|
|
| GC20-G01841 | No | - | Request |
|
