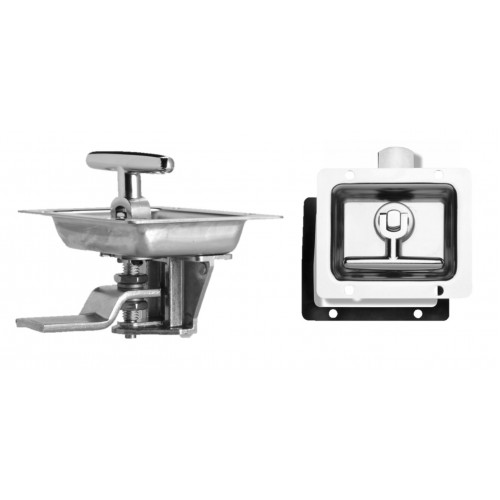

Identical in function to locking models, but with no lock cylinder and reduced pan dimensions
These are used when no security is required or where free-opening is mandatory
Easily fixed into a simple cut-out, with shaped latch tongue giving 3 mm take-up against gasketed door edge
Polished die cast ‘hub’, and neoprene seal under stainless ‘cup’ washer for good appearance, corrosion resistance and weatherproofing. Gasket supplied.
Lift handle to turn latch bar, with 5 mm cam-form, adjustable through 12 mm vertically
Latch travels 90° from centre (rest) position against ‘stops’ and is ‘handed’ LH or RH (not reversible)
