GRIPWELL

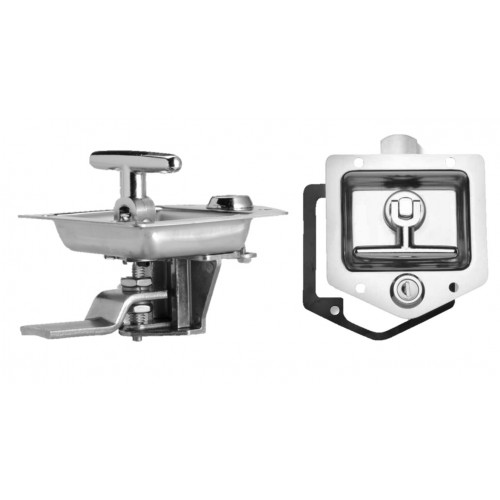

Drop-T Single Point Locking Latch
GC23
- Self-contained handle, lock and adjustable latch in a flush-fitting recess pan, with good resistance to water penetration
- Easily fixed into a simple cut-out, with shaped latch tongue giving 3 mm take-up against gasketed door edge
- Stainless models are bright-polished for good appearance, neoprene seal under stainless ‘cup’ washer for weatherproofing, rubber gasket supplied as standard
- Lift handle to turn latch tongue, which is adjustable through 12 mm vertically. Locks only in centre (rest) position
- Latch travels 90 degrees from centre against ‘stops’ and is ‘handed’ LH or RH as specified, non-reversible
| Part No. | Material | Key | Type | CAD | Quantity | |
| GC23-G01501 | Stainless Steel | Mixed, Different | LH | Request |
|
|
| GC23-G01502 | Stainless Steel | Mixed, Different | RH | Request |
|
|
| GC23-G01503 | Stainless Steel | Standard, FS880 | LH | Request |
|
|
| GC23-G01504 | Stainless Steel | Standard, FS880 | RH | Request |
|
|
| GC23-G01511 | Mild Steel | Mixed, Different | LH | Request |
|
|
| GC23-G01512 | Mild Steel | Mixed, Different | RH | Request |
|
|
| GC23-G01513 | Mild Steel | Standard, FS880 | LH | Request |
|
|
| GC23-G01514 | Mild Steel | Standard, FS880 | RH | Request |
|
