GRIPWELL

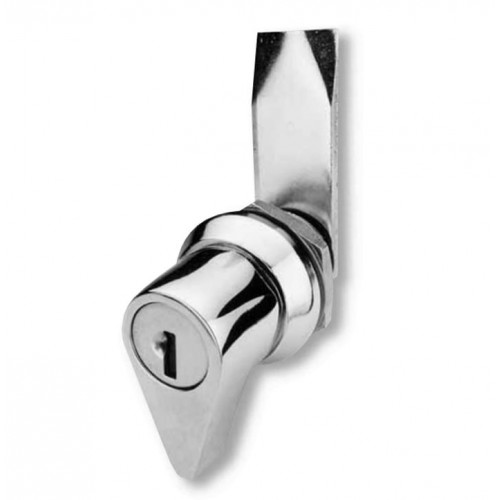

Compact Locking Handle Cam Latch
GA11
- Our ‘Compact’ model takes very little more space than a compartment lock, but it removes the load from the key
- With cam-formed latch (or rods) it can be used even on gasketed doors, and can be water-sealed if required
- Rotation is 90° LH or RH as shown, or 180°
- Key operates only when handle is vertical, but key withdraws in both top & bottom (locked) positions
| Part No. | Rotation | Key | CAD | Quantity | |
| GA11-00935 | 90⁰ RH | Standard | Request |
|
|
| GA11-00935-01 | 90⁰ RH | FS880 | Request |
|
|
| GA11-00936 | 90⁰ LH | Standard | Request |
|
|
| GA11-00936-01 | 90⁰ LH | FS880 | Request |
|
|
| GA11-009367 | 180⁰ | Standard | Request |
|
|
| GA11-009367-01 | 180⁰ | FS880 | Request |
|
