Large Budget Latch

GRIPWELL

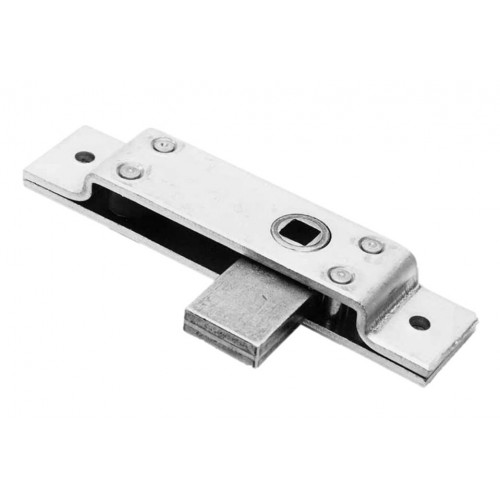

Large Budget Latch

GD5


  • With exceptionally strong construction, this model suits heavy applications and where a stronger, more substantial bolt is required to resist abuse
  • Application uses include large storage containers, bus engine and luggage compartments
  • Very substantially constructed with 3 mm steel plates for full length of latch, four steel pillar rivets to prevent ‘bowing’ and distortion, and forged 8 mm brass bolt
  • Handed for 90° operation, LH / RH as shown operated by standard 8 mm square follow bush

Part No. Description Type CAD Quantity
GD5-G00755 LH Request
GD5-G00756 RH Request
