GRIPWELL

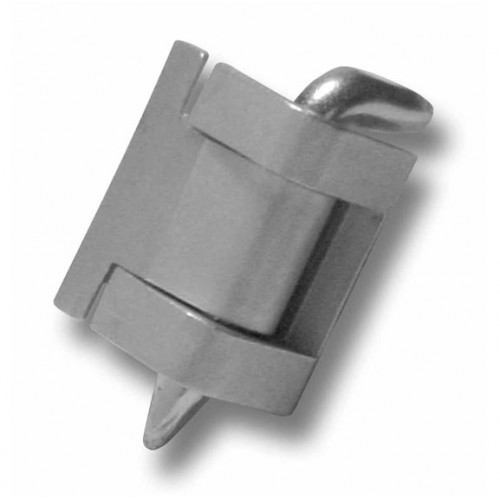

Stainless Steel 316 Corner Door Removable Hinge
H132
- 180° hinge for surface mounted door
- RH or LH application
- The frame-part has a M6 threaded square stub for installation from inside
- Closed cut-out provides a stronger bending
| Part No. | Door Thickness | Pin Length | Pin Material | CAD | Quantity | |
| H132-C12-9705 | 2 | 43 | Stainless Steel 304 | Request |
|
|
| H132-C12-9706 | 2 | 57 | POM | Request |
|
|
| H132-C12-9707 | 1.5 | 70 | Stainless Steel 304 | Request |
|
|
| H132-C12-9714 | 2 | 70 | Stainless Steel 316 | Request |
|
|
| H132-C12-9716 | 1.5 | 70 | Stainless Steel 316 | Request |
|
