GRIPWELL

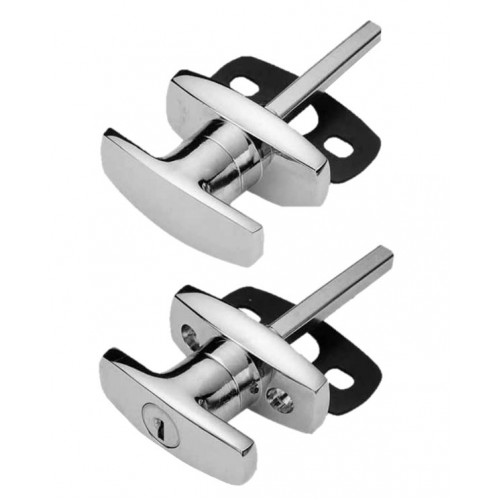

Small T-Handle With Surface Mounting
GB6
- Widely-used cabinet handle with rectangular, surface mounted escutcheons for either open or concealed fixing
- Lock cylinders are “shuttered” for weather-resistance and there is choice of 38 mm or 44 mm hole centres
- 180⁰ rotation as standard, rotation can be limited to 90⁰, LH/RH when required
- Use with latching cams, slam latches or rod systems
| Part No. | Type | Key | CAD | Quantity | |
| GB6-G00140 | 38 mm Open Fixing | Standard | Request |
|
|
| GB6-G00140-01 | 38 mm Open Fixing | FS880 | Request |
|
|
| GB6-G00141 | 38 mm Open Fixing | Non-Locking | Request |
|
|
| GB6-G00142 | 38 mm Concealed Fixing | Standard | Request |
|
|
| GB6-G00142-01 | 38 mm Concealed Fixing | FS880 | Request |
|
|
| GB6-G00143 | 38 mm Concealed Fixing | Non-Locking | Request |
|
|
| GB6-G00240 | 44 mm Open Fixing | Standard | Request |
|
|
| GB6-G00240-01 | 44 mm Open Fixing | FS880 | Request |
|
|
| GB6-G00241 | 44 mm Open Fixing | Non-Locking | Request |
|
