GRIPWELL

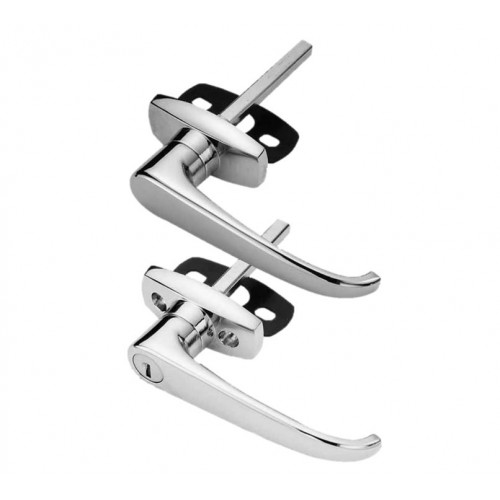

Lever L-Handle With Surface Mounting
GB5
- Good-looking handle with rectangular, surface mounted escutcheons for either open or concealed fixing
- Lock cylinders are “shuttered” for weather resistance and there is choice of 38 mm or 44 mm hole centres
- 180° rotation as standard, rotation can be limited to 90°, LH/RH, or 360° free-movement
- Use with latching cams, slam latches or rod systems
| Part No. | Type | Key | CAD | Quantity | |
| GB5-G00167 | 38 mm Open Fixing | Standard | Request |
|
|
| GB5-G00167-01 | 38 mm Open Fixing | FS880 | Request |
|
|
| GB5-G00170 | 38 mm Open Fixing | Non-Locking | Request |
|
|
| GB5-G00171 | 38 mm Concealed Fixing | Standard | Request |
|
|
| GB5-G00171-01 | 38 mm Concealed Fixing | FS880 | Request |
|
|
| GB5-G00172 | 38 mm Concealed Fixing | Non-Locking | Request |
|
|
| GB5-G00173 | 44 mm Open Fixing | Standard | Request |
|
|
| GB5-G00173-01 | 44 mm Open Fixing | FS880 | Request |
|
|
| GB5-G00183 | 44 mm Open Fixing | Non-Locking | Request |
|
