SOUTHCO

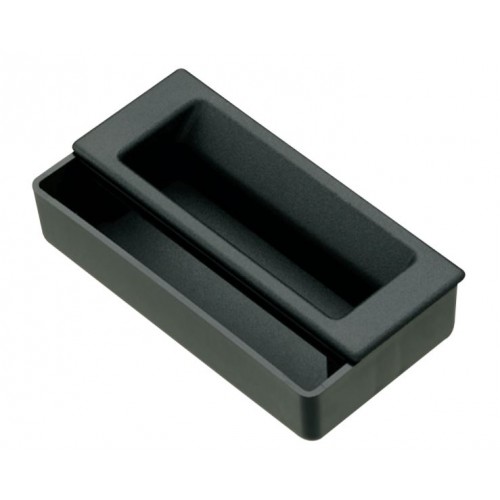

Flush Pull
P1
Durable and stylish recessed pull provides a convenient grip to dress up any heavier door or drawer application. Two-piece recessed cup design sandwiches the door panel to provide ample space for a full-handed, two-knuckle-deep grip, with minimal protrusion from front of panel.
- Simple single-hole mounting –flush face slides through panel, cup attaches from back side with concealed self-tapping mounting screws
- Can be used for lifting, pulling, sliding or pushing doors or drawers
- Lifting load on pull transfers directly to panel edge
| Part No. | Door Thickness Range | Type | CAD | Quantity | |
| P1-30-101-11 | 1.0 - 1.8 | UL94-HB | Download |
|
|
| P1-30-103-11 | 1.8 - 3.3 | UL94-HB | Download |
|
|
| P1-30-105-11 | 3.3 - 4.8 | UL94-HB | Download |
|
|
| P1-30-107-11 | 4.8 - 6.3 | UL94-HB | Download |
|
|
| P1-31 | 1.0 - 1.8 | UL94-V0 | Download |
|
|
| P1-33 | 1.8 - 3.3 | UL94-V0 | Download |
|
|
| P1-35 | 3.3 - 4.8 | UL94-V0 | Download |
|
|
| P1-37 | 4.8 - 6.3 | UL94-V0 | Download |
|
