SOUTHCO

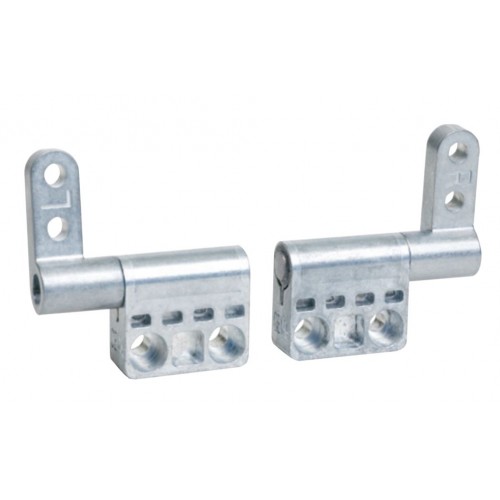

Embedded Torque Hinge
ST-10A
- Smooth, zero backlash operation
- Space efficient design provides high torque in minimum space
- Constant torque, never needs adjusting
| Part No. | Torque Type | Type | Forward (N.m) | Reverse (N.m) | CAD | Quantity | |
| ST-10A-120FA-33 | Asymmetric | A | 1.36 | 0.81 | Download |
|
|
| ST-10A-120FB-33 | Asymmetric | B | 1.36 | 0.81 | Download |
|
|
| ST-10A-120RA-33 | Asymmetric | A | 0.81 | 1.34 | Download |
|
|
| ST-10A-120RB-33 | Asymmetric | B | 0.81 | 1.34 | Download |
|
|
| ST-10A-120SA-33 | Symmetric | A | 1.36 | 1.36 | Download |
|
|
| ST-10A-120SB-33 | Symmetric | B | 1.36 | 1.36 | Download |
|
|
| ST-10A-160FA-33 | Asymmetric | A | 1.81 | 1.08 | Download |
|
|
| ST-10A-160FB-33 | Asymmetric | B | 1.81 | 1.08 | Download |
|
|
| ST-10A-160RA-33 | Asymmetric | A | 1.08 | 1.84 | Download |
|
|
| ST-10A-160RB-33 | Asymmetric | B | 1.08 | 1.84 | Download |
|
|
| ST-10A-160SA-33 | Symmetric | A | 1.81 | 1.81 | Download |
|
|
| ST-10A-160SB-33 | Symmetric | B | 1.81 | 1.81 | Download |
|
|
| ST-10A-200FA-33 | Asymmetric | A | 2.26 | 1.36 | Download |
|
|
| ST-10A-200FB-33 | Asymmetric | B | 2.26 | 1.36 | Download |
|
|
| ST-10A-200RA-33 | Asymmetric | A | 1.36 | 2.26 | Download |
|
|
| ST-10A-200RB-33 | Asymmetric | B | 1.36 | 2.26 | Download |
|
|
| ST-10A-200SA-33 | Symmetric | A | 2.26 | 2.26 | Download |
|
|
| ST-10A-200SB-33 | Symmetric | B | 2.26 | 2.26 | Download |
|
|
| ST-10A-80SA-33 | Symmetric | A | 0.90 | 0.90 | Download |
|
|
| ST-10A-80SB-33 | Symmetric | B | 0.90 | 0.90 | Download |
|
