GRIPWELL

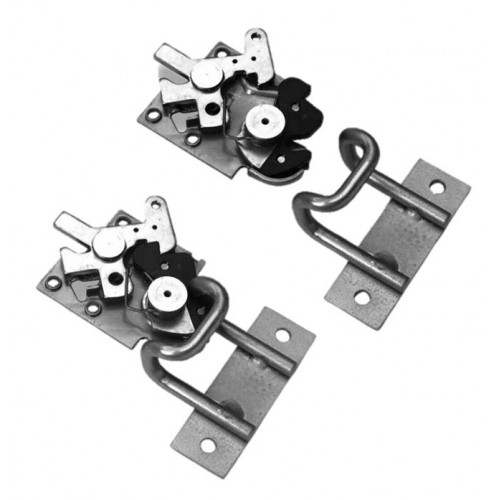

Plate Type Claw Latch
GD17
- An unusual design in which a rotating pawl engages and release the operating ‘claw’
- All motion is in the same plane, allowing the latch to fit into a confined aperture between panels
- Applications include vehicle compartments, partitions and hatches
- Latch slams into a special loop-striker, engaging the ‘claw’ and trapping the ‘nose’ of the latch against the reverse of the striker loop as shown
- ‘Claw’ is released by rotating pawl, which has two operating points, for internal and external release
- Microswitch model available to indicate whether latch is properly closed
- Actuator arm can be fitted to release point, allowing latch to be operated by solenoid
| Part No. | Type | CAD | Quantity | |
| GD17-G01770 | ‘Claw Latch’ with Microswitch | Request |
|
|
| GD17-G01771 | ‘Claw Latch’ with Microswitch and Actuator Arm | Request |
|
|
| GD17-G31250 | ‘Claw Latch’ | Request |
|
