GRIPWELL

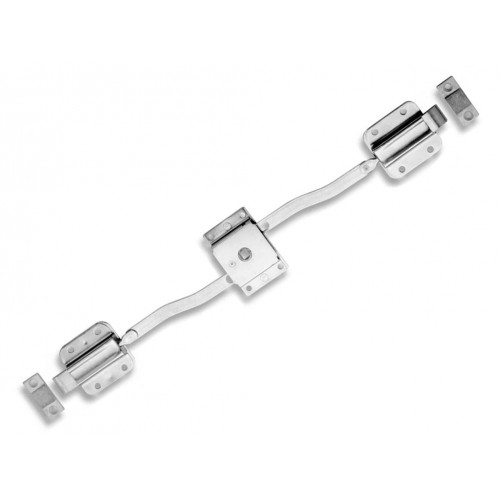

Two Way Slam System
GC31
- The standard model illustrated is representative of a family of 2-way centre mechanisms, used with our end latches to provide slam action on two sides of a door or panel
- Right-hand and left-hand systems are available, with many options to suit (volume) applications
- System slams shut, is opened by inside / outside handle or ‘T’-key. It can be slammed even when handle is locked, due to ‘free movement’ allowed by link bars
- Rotation of centre follow-bush (8 mm) withdraws link bars and slam bolts
- System is handed by direction of rotation of follow bush and position of bars
| Part No. | Type | Direction | CAD | Quantity | |
| GC31-G02058 | Complete System | RH | Request |
|
|
| GC31-G02059 | Complete System | LH | Request |
|
|
| GC31-G02060 | 2 Way Centre Case Only | RH | Request |
|
|
| GC31-G02061 | 2 Way Centre Case Only | LH | Request |
|
