GRIPWELL

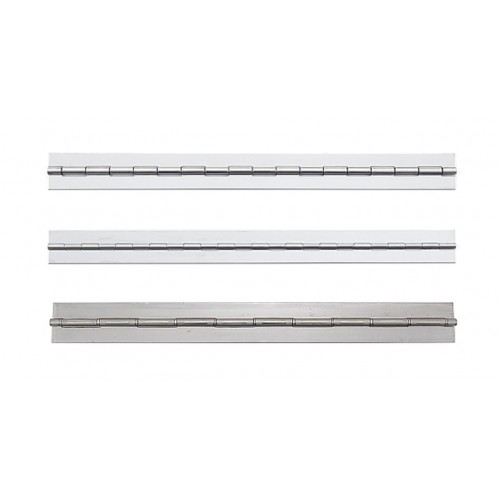

Stainless Steel Piano Hinge
GLSN
- 5 widths (25mm, 32mm, 38mm, 50mm, 100mm) and lengths from 300 to 2000mm suitable for various applications
- Thick type (t = 3mm, 4mm) for ultra heavy duty also available
- GLSN 40-100-500 and GLSN 40-100-1000 have built-in metal mesh resin composite bush with excellent wear resistance. Both ends are welded to prevent shaft from slipping off
- Special dimensions, additional hole drilling, or other materials and finishes are available on request
| Part No. | Finish | L | W | Load Capacity (kg) | CAD | Quantity | |
| GLSN15-32-1000 | Polished | 1000 | 32 | 76 | Download |
|
|
| GLSN15-32-300 | Polished | 300 | 32 | 26 | Download |
|
|
| GLSN15-32-350 | Polished | 350 | 32 | 31 | Download |
|
|
| GLSN15-32-450 | Polished | 450 | 32 | 40 | Download |
|
|
| GLSN15-32-600 | Polished | 600 | 32 | 53 | Download |
|
|
| GLSN15-32-750 | Polished | 750 | 32 | 61 | Download |
|
|
| GLSN15-32-850 | Polished | 850 | 32 | 64 | Download |
|
|
| GLSN15-32-900 | Polished | 900 | 32 | 68 | Download |
|
|
| GLSN15-38-1000 | Polished | 1000 | 38 | 76 | Download |
|
|
| GLSN15-38-1800 | Polished | 1800 | 38 | 140 | Download |
|
|
| GLSN15-50-1000 | Polished | 1000 | 50 | 76 | Download |
|
|
| GLSN15-50-1800 | Polished | 1800 | 50 | 140 | Download |
|
|
| GLSN20-50-1000 | Polished | 1000 | 50 | 100 | Download |
|
|
| GLSN30-100-1000 | Plain | 1000 | 100 | 140 | Download |
|
|
| GLSN30-100-2000 | Plain | 2000 | 100 | 260 | Download |
|
|
| GLSN40-100-1000 | Plain | 1000 | 100 | 180 | Download |
|
|
| GLSN40-100-500 | Plain | 500 | 100 | 100 | Download |
|
|
| GLSN8-25-1000 | Polished | 1000 | 25 | 47 | Download |
|
|
| GLSN8-25-1800 | Polished | 1800 | 25 | 73 | Download |
|
|
| GLSN8-25-300 | Polished | 300 | 25 | 14 | Download |
|
|
| GLSN8-25-600 | Polished | 600 | 25 | 28 | Download |
|
|
| GLSN8-32-1000 | Polished | 1000 | 32 | 47 | Download |
|
|
| GLSN8-32-1800 | Polished | 1800 | 32 | 73 | Download |
|
|
| GLSN8-32-300 | Polished | 300 | 32 | 13 | Download |
|
|
| GLSN8-32-600 | Polished | 600 | 32 | 28 | Download |
|
|
| GLSN8-38-1000 | Polished | 1000 | 38 | 47 | Download |
|
|
| GLSN8-38-1800 | Polished | 1800 | 38 | 73 | Download |
|
