GRIPWELL

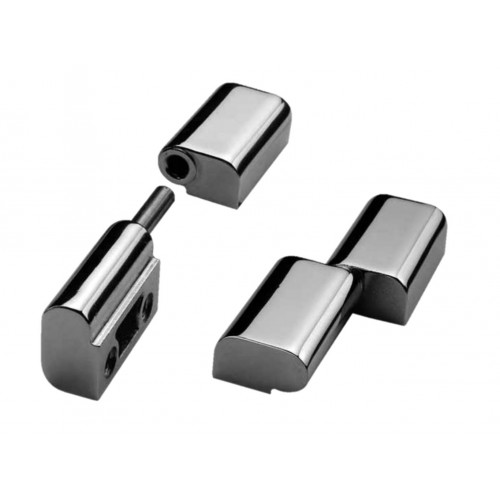

Die Cast Lift-Off Hinge (For Flush Doors)
GF11
- Simple way to hang flush doors on metal cabinets, electrical enclosures, etc. allowing “lift-off” capability from a narrow door surrounding
- ‘Handed’, left- and right -, these hinges provide great flexibility in a variety of configurations
- Use one hinge of each hand to create a non-lift-off, permanently retained door
- Bottom half of hinge contains a fixed, stainless steel pin, and is fitted to door frame
- Plant-on fitting, with two holes in base of each portion, tapped for M6 bolts
| Part No. | Type | Finish | CAD | Quantity | |
| GF11-G01966 | Right-hand | Chrome | Request |
|
|
| GF11-G01966B | Right-hand | Black | Request |
|
|
| GF11-G01966R | Right-hand | Raw | Request |
|
|
| GF11-G01967 | Left-hand | Chrome | Request |
|
|
| GF11-G01967B | Left-hand | Black | Request |
|
|
| GF11-G01967R | Left-hand | Raw | Request |
|
