GRIPWELL

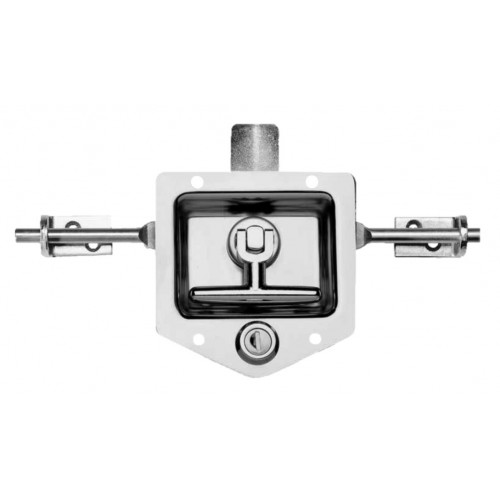

Three Way Drop-T Locking Latch System
GC27
- Complete latching system for the largest doors. Handle, lock, latch and flush recess pan form a self-contained unit needing only a simple cut-out
- Rods attached on site and adjustable for either LR or RH movement
- Polished die cast ‘hub’, and neoprene seal under stainless ‘cup’washer for good appearance, corrosion-resistance and weatherproofing
- Lift handle to turn, releasing latch tongue and withdrawing rods
- Latch travels 90° from centre against ‘stops’, which can be adjusted to allow either LH or RH operation
| Part No. | Type | Material | Key | CAD | Quantity | |
| GC27-G01561 | Complete System | Stainless Steel | Mixed | Request |
|
|
| GC27-G01561-01 | Complete System | Stainless Steel | FS880 | Request |
|
|
| GC27-G01562 | Complete System | Mild Steel | Mixed | Request |
|
|
| GC27-G01562-01 | Complete System | Mild Steel | FS880 | Request |
|
|
| GC27-G01567 | Centre Case Only | Stainless Steel | Mixed | Request |
|
|
| GC27-G01567-01 | Centre Case Only | Stainless Steel | FS880 | Request |
|
|
| GC27-G01568 | Centre Case Only | Mild Steel | Mixed | Request |
|
|
| GC27-G01568-01 | Centre Case Only | Mild Steel | FS880 | Request |
|
