SOUTHCO

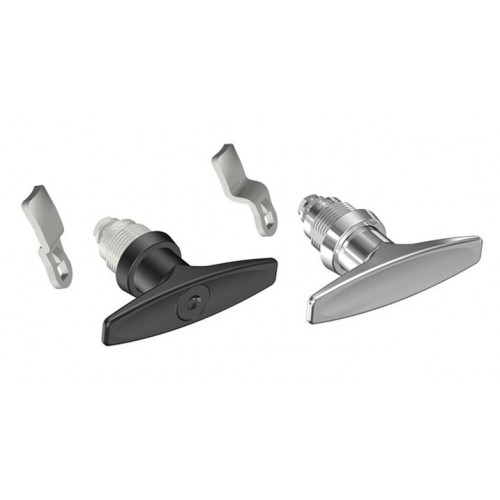

T-Handle Cam Latch
E5
These latches deliver affordable simplicity – including quick access with just a quarter turn, the versatility of multiple body materials, plus the flexibility of modular design for numerous actuation and dimensional options. Ramped cams provide a snug fit to minimize vibration and rattles.
- T-handle style
- Single hole install
- Multiple key codes option
- NEMA 4 / IP65 achieved using supplied gasket
| Part No. | Description | Lock Style | Finish | Key Supplied | Grip | CAD | Quantity | |
| E5-6003 | Cam Pawl | - | - | - | 4 mm | Download |
|
|
| E5-6004 | Cam Pawl | - | - | - | 6 mm | Download |
|
|
| E5-6005 | Cam Pawl | - | - | - | 8 mm | Download |
|
|
| E5-6006 | Cam Pawl | - | - | - | 10 mm | Download |
|
|
| E5-6007 | Cam Pawl | - | - | - | 12 mm | Download |
|
|
| E5-6008 | Cam Pawl | - | - | - | 14 mm | Download |
|
|
| E5-6009 | Cam Pawl | - | - | - | 16 mm | Download |
|
|
| E5-6010 | Cam Pawl | - | - | - | 18 mm | Download |
|
|
| E5-6011 | Cam Pawl | - | - | - | 20 mm | Download |
|
|
| E5-6012 | Cam Pawl | - | - | - | 22 mm | Download |
|
|
| E5-6013 | Cam Pawl | - | - | - | 24 mm | Download |
|
|
| E5-6014 | Cam Pawl | - | - | - | 26 mm | Download |
|
|
| E5-6015 | Cam Pawl | - | - | - | 28 mm | Download |
|
|
| E5-6016 | Cam Pawl | - | - | - | 30 mm | Download |
|
|
| E5-6017 | Cam Pawl | - | - | - | 32 mm | Download |
|
|
| E5-6018 | Cam Pawl | - | - | - | 34 mm | Download |
|
|
| E5-6019 | Cam Pawl | - | - | - | 36 mm | Download |
|
|
| E5-6020 | Cam Pawl | - | - | - | 38 mm | Download |
|
|
| E5-6021 | Cam Pawl | - | - | - | 40 mm | Download |
|
|
| E5-6022 | Cam Pawl | - | - | - | 42 mm | Download |
|
|
| E5-9-602-UU1 | Latch | Non Locking | Bright Chrome | - | - | Download |
|
|
| E5-9-605-UU1 | Latch | Non Locking | Black Powder Coated | - | - | Download |
|
|
| E5-9-612-UU1-13 | Latch | Key Locking (CH 751) | Bright Chrome | Yes | - | Download |
|
|
| E5-9-615-UU1-13 | Latch | Key Locking (CH 751) | Black Powder Coated | Yes | - | Download |
|
|
| E5-9-622-UU1-13 | Latch | Key Locking (R001) | Bright Chrome | Yes | - | Download |
|
|
| E5-9-625-UU1-13 | Latch | Key Locking (R001) | Black Powder Coated | Yes | - | Download |
|
|
| E5-9-632-UU1 | Latch | Without Lock Core | Bright Chrome | - | - | Download |
|
|
| E5-9-635-UU1 | Latch | Without Lock Core | Black Powder Coated | - | - | Download |
|
