SOUTHCO

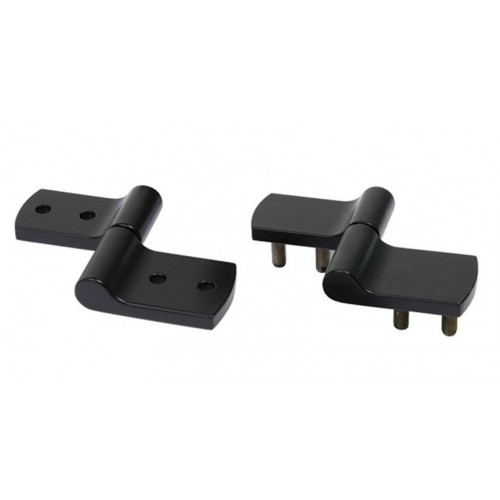

Torque Hinge
ST-11A
- Holds in every position
- No adjustment required
- Long cycle life
| Part No. | Torque Type | Mounting | Type | Forward Torque (N.m) | Reverse Torque (N.m) | CAD | Quantity | |
| ST-11A-140FA-50 | Asymmetric | Thru Hole | A | 1.58 | 0.95 | Download |
|
|
| ST-11A-140FB-50 | Asymmetric | Thru Hole | B | 1.58 | 0.95 | Download |
|
|
| ST-11A-140RA-50 | Asymmetric | Thru Hole | A | 0.95 | 1.58 | Download |
|
|
| ST-11A-140RB-50 | Asymmetric | Thru Hole | B | 0.95 | 1.58 | Download |
|
|
| ST-11A-140SA-50 | Symmetric | Thru Hole | A | 1.58 | 1.58 | Download |
|
|
| ST-11A-140SB-50 | Symmetric | Thru Hole | B | 1.58 | 1.58 | Download |
|
|
| ST-11A-200FA-50 | Asymmetric | Thru Hole | A | 2.26 | 1.36 | Download |
|
|
| ST-11A-200FB-50 | Asymmetric | Thru Hole | B | 2.26 | 1.36 | Download |
|
|
| ST-11A-200RA-50 | Asymmetric | Thru Hole | A | 1.36 | 2.26 | Download |
|
|
| ST-11A-200RB-50 | Asymmetric | Thru Hole | B | 1.36 | 2.26 | Download |
|
|
| ST-11A-200SA-50 | Symmetric | Thru Hole | A | 2.26 | 2.26 | Download |
|
|
| ST-11A-200SB-50 | Symmetric | Thru Hole | B | 2.26 | 2.26 | Download |
|
|
| ST-11A-260FA-50 | Asymmetric | Thru Hole | A | 2.94 | 1.76 | Download |
|
|
| ST-11A-260FB-50 | Asymmetric | Thru Hole | B | 2.94 | 1.76 | Download |
|
|
| ST-11A-260RA-50 | Asymmetric | Thru Hole | A | 1.76 | 2.94 | Download |
|
|
| ST-11A-260RB-50 | Asymmetric | Thru Hole | B | 1.76 | 2.94 | Download |
|
|
| ST-11A-260SA-50 | Symmetric | Thru Hole | A | 2.94 | 2.94 | Download |
|
|
| ST-11A-260SB-50 | Symmetric | Thru Hole | B | 2.94 | 2.94 | Download |
|
|
| ST-11A-320FA-50 | Asymmetric | Thru Hole | A | 3.62 | 2.17 | Download |
|
|
| ST-11A-320FB-50 | Asymmetric | Thru Hole | B | 3.62 | 2.17 | Download |
|
|
| ST-11A-320RA-50 | Asymmetric | Thru Hole | A | 2.17 | 3.62 | Download |
|
|
| ST-11A-320RB-50 | Asymmetric | Thru Hole | B | 2.17 | 3.62 | Download |
|
|
| ST-11A1-140FA-50 | Asymmetric | M5 Stud | A | 1.58 | 0.95 | Download |
|
|
| ST-11A1-140FB-50 | Asymmetric | M5 Stud | B | 1.58 | 0.95 | Download |
|
|
| ST-11A1-140RA-50 | Asymmetric | M5 Stud | A | 0.95 | 1.58 | Download |
|
|
| ST-11A1-140RB-50 | Asymmetric | M5 Stud | B | 0.95 | 1.58 | Download |
|
|
| ST-11A1-140SA-50 | Symmetric | M5 Stud | A | 1.58 | 1.58 | Download |
|
|
| ST-11A1-140SB-50 | Symmetric | M5 Stud | B | 1.58 | 1.58 | Download |
|
|
| ST-11A1-200FA-50 | Asymmetric | M5 Stud | A | 2.26 | 1.36 | Download |
|
|
| ST-11A1-200FB-50 | Asymmetric | M5 Stud | B | 2.26 | 1.36 | Download |
|
|
| ST-11A1-200RA-50 | Asymmetric | M5 Stud | A | 1.36 | 2.26 | Download |
|
|
| ST-11A1-200RB-50 | Asymmetric | M5 Stud | B | 1.36 | 2.26 | Download |
|
|
| ST-11A1-200SA-50 | Symmetric | M5 Stud | A | 2.26 | 2.26 | Download |
|
|
| ST-11A1-200SB-50 | Symmetric | M5 Stud | B | 2.26 | 2.26 | Download |
|
|
| ST-11A1-260FA-50 | Asymmetric | M5 Stud | A | 2.94 | 1.76 | Download |
|
|
| ST-11A1-260FB-50 | Asymmetric | M5 Stud | B | 2.94 | 1.76 | Download |
|
|
| ST-11A1-260RA-50 | Asymmetric | M5 Stud | A | 1.76 | 2.94 | Download |
|
|
| ST-11A1-260RB-50 | Asymmetric | M5 Stud | B | 1.76 | 2.94 | Download |
|
|
| ST-11A1-260SA-50 | Symmetric | M5 Stud | A | 2.94 | 2.94 | Download |
|
|
| ST-11A1-260SB-50 | Symmetric | M5 Stud | B | 2.94 | 2.94 | Download |
|
|
| ST-11A1-320FA-50 | Asymmetric | M5 Stud | A | 3.62 | 2.17 | Download |
|
|
| ST-11A1-320FB-50 | Asymmetric | M5 Stud | B | 3.62 | 2.17 | Download |
|
|
| ST-11A1-320RA-50 | Asymmetric | M5 Stud | A | 2.17 | 3.62 | Download |
|
|
| ST-11A1-320RB-50 | Asymmetric | M5 Stud | B | 2.17 | 3.62 | Download |
|
