SOUTHCO

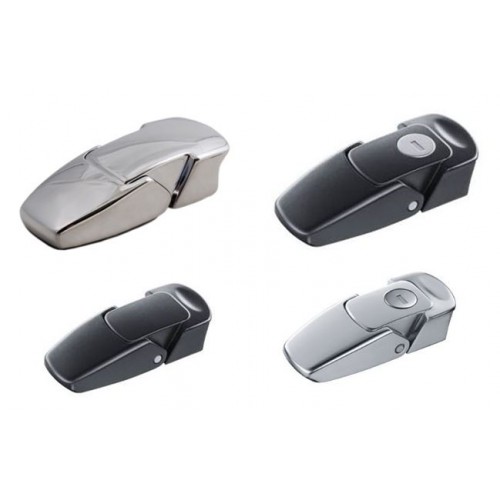

Over-Center Draw Latch
V7
A gently curved low-profile surface-mount design and an optional keylocking feature complement the robust performance of this latch with attractive styling and enhanced security. The high-strength body encloses all working hardware, for improved aesthetics and tamper-resistance.
- Over-center latching design ensures positive engagement and resists accidental opening under stress or vibration
- Low-profile design stands just 22.2 mm above panel
- Riveted construction enhances robust performance and durability
- Gently contoured exterior eliminates sharp edges to minimize potential for injury
- Suitable for indoor and outdoor applications
- Multiple finish options complement most enclosure designs
| Part No. | Material | Size | Type | CAD | Quantity | |
| V7-10-105-10 | Zinc Alloy, Bright Chrome | Small | Non Locking | Download |
|
|
| V7-10-105-20 | Zinc Alloy, Chrome | Small | Non Locking | Download |
|
|
| V7-10-105-50 | Zinc Alloy, Black Powder Coated | Small | Non Locking | Download |
|
|
| V7-10-115-10 | Zinc Alloy, Bright Chrome | Small | Key Locking | Download |
|
|
| V7-10-115-20 | Zinc Alloy, Chrome | Small | Key Locking | Download |
|
|
| V7-10-115-50 | Zinc Alloy, Black Powder Coated | Small | Key Locking | Download |
|
|
| V7-20-101-10 | Zinc Alloy, Bright Chrome | Large | Non Locking | Download |
|
|
| V7-20-101-20 | Zinc Alloy, Chrome | Large | Non Locking | Download |
|
|
| V7-20-101-24 | Stainless Steel 316 | Large | Non Locking | Download |
|
|
| V7-20-101-50 | Zinc Alloy, Black Powder Coated | Large | Non Locking | Download |
|
|
| V7-20-111-10 | Zinc Alloy, Bright Chrome | Large | Key Locking | Download |
|
|
| V7-20-111-20 | Zinc Alloy, Chrome | Large | Key Locking | Download |
|
|
| V7-20-111-24 | Stainless Steel 316 | Large | Key Locking | Download |
|
|
| V7-20-111-50 | Zinc Alloy, Black Powder Coated | Large | Key Locking | Download |
|
