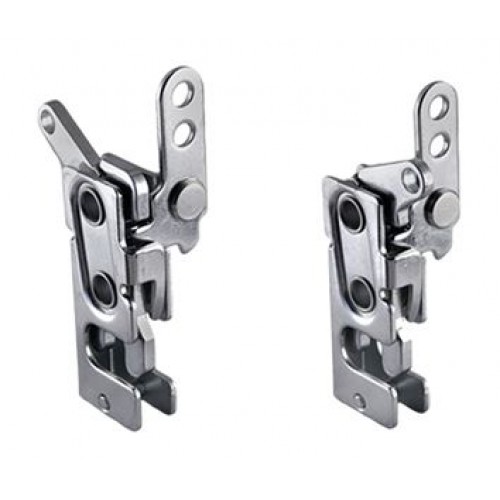

Small Rotary Latch (Dual Trigger)
R4-10
These robust latching solutions for doors and panels of heavy-duty equipment and vehicles combine rotary-action security with push-to-close convenience. Their compact design provides concealed operation, while tolerating misalignment on closing, engaging easily with low closing force, and latching firmly with a snug, secure fit.
- Small size, dual trigger
- Single or multi-point latch capability
- All metal construction for durable, long-lasting performance
- Compatible with wide array of actuators
- EN 45545-3 E60 compliant
- Average ultimate load: 4,500 N
| Part No. | Description | Stage & Actuation | Mounting Style | Lever Type | Base Style | Material | CAD | Quantity | |
| R4-0-50114 | Striker Mounting Bracket | - | - | - | - | - | Download |
|
|
| R4-10-10-701-10 | Rotary Latch | Single Stage, Right Hand | Ø7.2 Thru | Dual Trigger, Bottom | Standard | Steel | Download |
|
|
| R4-10-10-705-10 | Rotary Latch | Single Stage, Right Hand | Ø7.2 Thru | Dual Trigger, Bottom | Integrated Bumper | Steel | Download |
|
|
| R4-10-10-801-10 | Rotary Latch | Single Stage, Right Hand | Ø7.2 Thru | Dual Trigger, Top | Standard | Steel | Download |
|
|
| R4-10-10-805-10 | Rotary Latch | Single Stage, Right Hand | Ø7.2 Thru | Dual Trigger, Top | Integrated Bumper | Steel | Download |
|
|
| R4-10-11-701-10 | Rotary Latch | Single Stage, Right Hand | 1/4-20 Thread | Dual Trigger, Bottom | Standard | Steel | Download |
|
|
| R4-10-11-705-10 | Rotary Latch | Single Stage, Right Hand | 1/4-20 Thread | Dual Trigger, Bottom | Integrated Bumper | Steel | Download |
|
|
| R4-10-11-801-10 | Rotary Latch | Single Stage, Right Hand | 1/4-20 Thread | Dual Trigger, Top | Standard | Steel | Download |
|
|
| R4-10-11-805-10 | Rotary Latch | Single Stage, Right Hand | 1/4-20 Thread | Dual Trigger, Top | Integrated Bumper | Steel | Download |
|
|
| R4-10-12-701-10 | Rotary Latch | Single Stage, Right Hand | M6 x 1 Thread | Dual Trigger, Bottom | Standard | Steel | Download |
|
|
| R4-10-12-705-10 | Rotary Latch | Single Stage, Right Hand | M6 x 1 Thread | Dual Trigger, Bottom | Integrated Bumper | Steel | Download |
|
|
| R4-10-12-801-10 | Rotary Latch | Single Stage, Right Hand | M6 x 1 Thread | Dual Trigger, Top | Standard | Steel | Download |
|
|
| R4-10-12-805-10 | Rotary Latch | Single Stage, Right Hand | M6 x 1 Thread | Dual Trigger, Top | Integrated Bumper | Steel | Download |
|
|
| R4-10-20-701-10 | Rotary Latch | Single Stage, Left Hand | Ø7.2 Thru | Dual Trigger, Bottom | Standard | Steel | Download |
|
|
| R4-10-20-705-10 | Rotary Latch | Single Stage, Left Hand | Ø7.2 Thru | Dual Trigger, Bottom | Integrated Bumper | Steel | Download |
|
|
| R4-10-20-801-10 | Rotary Latch | Single Stage, Left Hand | Ø7.2 Thru | Dual Trigger, Top | Standard | Steel | Download |
|
|
| R4-10-20-805-10 | Rotary Latch | Single Stage, Left Hand | Ø7.2 Thru | Dual Trigger, Top | Integrated Bumper | Steel | Download |
|
|
| R4-10-21-701-10 | Rotary Latch | Single Stage, Left Hand | 1/4-20 Thread | Dual Trigger, Bottom | Standard | Steel | Download |
|
|
| R4-10-21-705-10 | Rotary Latch | Single Stage, Left Hand | 1/4-20 Thread | Dual Trigger, Bottom | Integrated Bumper | Steel | Download |
|
|
| R4-10-21-801-10 | Rotary Latch | Single Stage, Left Hand | 1/4-20 Thread | Dual Trigger, Top | Standard | Steel | Download |
|
|
| R4-10-21-805-10 | Rotary Latch | Single Stage, Left Hand | 1/4-20 Thread | Dual Trigger, Top | Integrated Bumper | Steel | Download |
|
|
| R4-10-22-701-10 | Rotary Latch | Single Stage, Left Hand | M6 x 1 Thread | Dual Trigger, Bottom | Standard | Steel | Download |
|
|
| R4-10-22-705-10 | Rotary Latch | Single Stage, Left Hand | M6 x 1 Thread | Dual Trigger, Bottom | Integrated Bumper | Steel | Download |
|
|
| R4-10-22-801-10 | Rotary Latch | Single Stage, Left Hand | M6 x 1 Thread | Dual Trigger, Top | Standard | Steel | Download |
|
|
| R4-10-22-805-10 | Rotary Latch | Single Stage, Left Hand | M6 x 1 Thread | Dual Trigger, Top | Integrated Bumper | Steel | Download |
|
|
| R4-90-121-10 | Striker Bolt - Standard | - | - | - | - | Steel | Download |
|
|
| R4-90-121-20 | Striker Bolt - Standard | - | - | - | - | Stainless Steel | Download |
|
|
| R4-90-124-10 | Striker Bolt - Bumper | - | - | - | - | Steel | Download |
|
|
| R4-90-124-20 | Striker Bolt - Bumper | - | - | - | - | Stainless Steel | Download |
|
