SOUTHCO

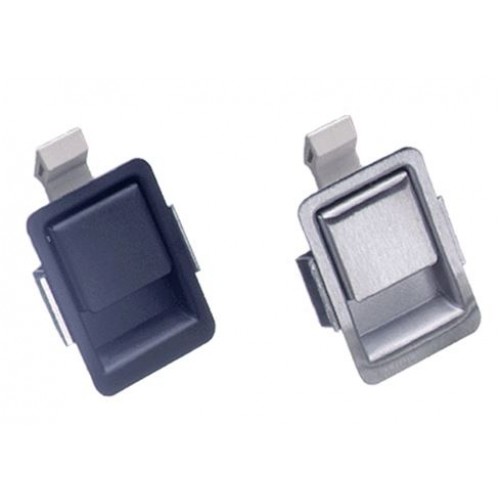

Small Paddle Latch (Plastic Slide)
64-10
The basic look and function of this entire line is elegant in its simplicity. The flat paddle in a flush-mount cup provides simplicity of design; the enclosed slide mechanism provides simplicity of operation. Lift paddle to retract slide and open door. Push door to close, and spring-loaded slide slips back behind frame.
- Small size
- Single hole installation
- Concealed mounting
- Plastic slide
| Part No. | Grip Range | Door Thickness | CAD | Quantity | |
| 64-10-111-50 | 1.2 - 2.0 | Max. 3.7 | Download |
|
|
| 64-10-113-50 | 2.8 - 3.6 | Max. 3.7 | Download |
|
|
| 64-10-114-50 | 6.0 - 6.7 | 3.9 - 7.3 | Download |
|
|
| 64-10-115-50 | 12.3 - 13.1 | 11.1 - 14.6 / 18.6 - 22.0 | Download |
|
|
| 64-10-116-50 | 18.6 - 19.4 | 11.1 - 14.6 / 18.6 - 22.0 | Download |
|
|
| 64-10-124-50 | 6.0 - 6.7 | Max. 3.7 | Download |
|
|
| 64-10-125-50 | 12.3 - 13.1 | Max. 3.7 | Download |
|
|
| 64-10-126-50 | 18.6 - 19.4 | Max. 3.7 | Download |
|
|
| 64-10-133-50 | 2.8 - 3.6 | 3.9 - 7.3 | Download |
|
|
| 64-10-135-50 | 12.3 - 13.1 | 3.9 - 7.3 | Download |
|
