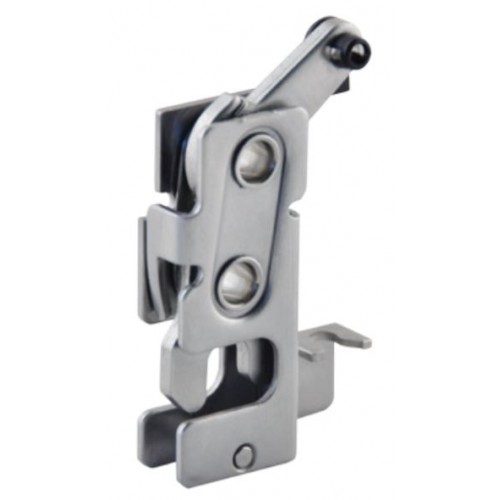

Small Rotary Latch (Integrated Cable Mounting)
R4-10
These robust latching solutions for doors and panels of heavy-duty equipment and vehicles combine rotary-action security with push-to-close convenience. Their compact design provides concealed operation, while tolerating misalignment on closing, engaging easily with low closing force, and latching firmly with a snug, secure fit.
- Small size, integrated cable mounting
- All metal construction for durable, long-lasting performance
- Compatible with wide array of actuators
- Average ultimate load: 4,000 N
| Part No. | Description | Stage & Actuation | Mounting Style | Base Style | Material | CAD | Quantity | |
| R4-0-50114 | Striker Mounting Bracket | - | - | - | - | Download |
|
|
| R4-10-10-502-10 | Rotary Latch | Single Stage, Right Hand | Ø7.2 Thru | Standard | Steel | Download |
|
|
| R4-10-10-502-20 | Rotary Latch | Single Stage, Right Hand | Ø7.2 Thru | Standard | Stainless Steel | Download |
|
|
| R4-10-10-506-10 | Rotary Latch | Single Stage, Right Hand | Ø7.2 Thru | Integrated Bumper | Steel | Download |
|
|
| R4-10-10-506-20 | Rotary Latch | Single Stage, Right Hand | Ø7.2 Thru | Integrated Bumper | Stainless Steel | Download |
|
|
| R4-10-11-502-10 | Rotary Latch | Single Stage, Right Hand | 1/4-20 Thread | Standard | Steel | Download |
|
|
| R4-10-11-502-20 | Rotary Latch | Single Stage, Right Hand | 1/4-20 Thread | Standard | Stainless Steel | Download |
|
|
| R4-10-11-506-10 | Rotary Latch | Single Stage, Right Hand | 1/4-20 Thread | Integrated Bumper | Steel | Download |
|
|
| R4-10-11-506-20 | Rotary Latch | Single Stage, Right Hand | 1/4-20 Thread | Integrated Bumper | Stainless Steel | Download |
|
|
| R4-10-12-502-10 | Rotary Latch | Single Stage, Right Hand | M6 x 1 Thread | Standard | Steel | Download |
|
|
| R4-10-12-502-20 | Rotary Latch | Single Stage, Right Hand | M6 x 1 Thread | Standard | Stainless Steel | Download |
|
|
| R4-10-12-506-10 | Rotary Latch | Single Stage, Right Hand | M6 x 1 Thread | Integrated Bumper | Steel | Download |
|
|
| R4-10-12-506-20 | Rotary Latch | Single Stage, Right Hand | M6 x 1 Thread | Integrated Bumper | Stainless Steel | Download |
|
|
| R4-10-20-502-10 | Rotary Latch | Single Stage, Left Hand | Ø7.2 Thru | Standard | Steel | Download |
|
|
| R4-10-20-502-20 | Rotary Latch | Single Stage, Left Hand | Ø7.2 Thru | Standard | Stainless Steel | Download |
|
|
| R4-10-20-506-10 | Rotary Latch | Single Stage, Left Hand | Ø7.2 Thru | Integrated Bumper | Steel | Download |
|
|
| R4-10-20-506-20 | Rotary Latch | Single Stage, Left Hand | Ø7.2 Thru | Integrated Bumper | Stainless Steel | Download |
|
|
| R4-10-21-502-10 | Rotary Latch | Single Stage, Left Hand | 1/4-20 Thread | Standard | Steel | Download |
|
|
| R4-10-21-502-20 | Rotary Latch | Single Stage, Left Hand | 1/4-20 Thread | Standard | Stainless Steel | Download |
|
|
| R4-10-21-506-10 | Rotary Latch | Single Stage, Left Hand | 1/4-20 Thread | Integrated Bumper | Steel | Download |
|
|
| R4-10-21-506-20 | Rotary Latch | Single Stage, Left Hand | 1/4-20 Thread | Integrated Bumper | Stainless Steel | Download |
|
|
| R4-10-22-502-10 | Rotary Latch | Single Stage, Left Hand | M6 x 1 Thread | Standard | Steel | Download |
|
|
| R4-10-22-502-20 | Rotary Latch | Single Stage, Left Hand | M6 x 1 Thread | Standard | Stainless Steel | Download |
|
|
| R4-10-22-506-10 | Rotary Latch | Single Stage, Left Hand | M6 x 1 Thread | Integrated Bumper | Steel | Download |
|
|
| R4-10-22-506-20 | Rotary Latch | Single Stage, Left Hand | M6 x 1 Thread | Integrated Bumper | Stainless Steel | Download |
|
|
| R4-10-30-502-10 | Rotary Latch | Two Stage, Right Hand | Ø7.2 Thru | Standard | Steel | Download |
|
|
| R4-10-30-502-20 | Rotary Latch | Two Stage, Right Hand | Ø7.2 Thru | Standard | Stainless Steel | Download |
|
|
| R4-10-30-506-10 | Rotary Latch | Two Stage, Right Hand | Ø7.2 Thru | Integrated Bumper | Steel | Download |
|
|
| R4-10-30-506-20 | Rotary Latch | Two Stage, Right Hand | Ø7.2 Thru | Integrated Bumper | Stainless Steel | Download |
|
|
| R4-10-31-502-10 | Rotary Latch | Two Stage, Right Hand | 1/4-20 Thread | Standard | Steel | Download |
|
|
| R4-10-31-502-20 | Rotary Latch | Two Stage, Right Hand | 1/4-20 Thread | Standard | Stainless Steel | Download |
|
|
| R4-10-31-506-10 | Rotary Latch | Two Stage, Right Hand | 1/4-20 Thread | Integrated Bumper | Steel | Download |
|
|
| R4-10-31-506-20 | Rotary Latch | Two Stage, Right Hand | 1/4-20 Thread | Integrated Bumper | Stainless Steel | Download |
|
|
| R4-10-32-502-10 | Rotary Latch | Two Stage, Right Hand | M6 x 1 Thread | Standard | Steel | Download |
|
|
| R4-10-32-502-20 | Rotary Latch | Two Stage, Right Hand | M6 x 1 Thread | Standard | Stainless Steel | Download |
|
|
| R4-10-32-506-10 | Rotary Latch | Two Stage, Right Hand | M6 x 1 Thread | Integrated Bumper | Steel | Download |
|
|
| R4-10-32-506-20 | Rotary Latch | Two Stage, Right Hand | M6 x 1 Thread | Integrated Bumper | Stainless Steel | Download |
|
|
| R4-10-40-502-10 | Rotary Latch | Two Stage, Left Hand | Ø7.2 Thru | Standard | Steel | Download |
|
|
| R4-10-40-502-20 | Rotary Latch | Two Stage, Left Hand | Ø7.2 Thru | Standard | Stainless Steel | Download |
|
|
| R4-10-40-506-10 | Rotary Latch | Two Stage, Left Hand | Ø7.2 Thru | Integrated Bumper | Steel | Download |
|
|
| R4-10-40-506-20 | Rotary Latch | Two Stage, Left Hand | Ø7.2 Thru | Integrated Bumper | Stainless Steel | Download |
|
|
| R4-10-41-502-10 | Rotary Latch | Two Stage, Left Hand | 1/4-20 Thread | Standard | Steel | Download |
|
|
| R4-10-41-502-20 | Rotary Latch | Two Stage, Left Hand | 1/4-20 Thread | Standard | Stainless Steel | Download |
|
|
| R4-10-41-506-10 | Rotary Latch | Two Stage, Left Hand | 1/4-20 Thread | Integrated Bumper | Steel | Download |
|
|
| R4-10-41-506-20 | Rotary Latch | Two Stage, Left Hand | 1/4-20 Thread | Integrated Bumper | Stainless Steel | Download |
|
|
| R4-10-42-502-10 | Rotary Latch | Two Stage, Left Hand | M6 x 1 Thread | Standard | Steel | Download |
|
|
| R4-10-42-502-20 | Rotary Latch | Two Stage, Left Hand | M6 x 1 Thread | Standard | Stainless Steel | Download |
|
|
| R4-10-42-506-10 | Rotary Latch | Two Stage, Left Hand | M6 x 1 Thread | Integrated Bumper | Steel | Download |
|
|
| R4-10-42-506-20 | Rotary Latch | Two Stage, Left Hand | M6 x 1 Thread | Integrated Bumper | Stainless Steel | Download |
|
|
| R4-90-121-10 | Striker Bolt - Standard | - | - | - | Steel | Download |
|
|
| R4-90-121-20 | Striker Bolt - Standard | - | - | - | Stainless Steel | Download |
|
|
| R4-90-124-10 | Striker Bolt - Bumper | - | - | - | Steel | Download |
|
|
| R4-90-124-20 | Striker Bolt - Bumper | - | - | - | Stainless Steel | Download |
|
