SOUTHCO

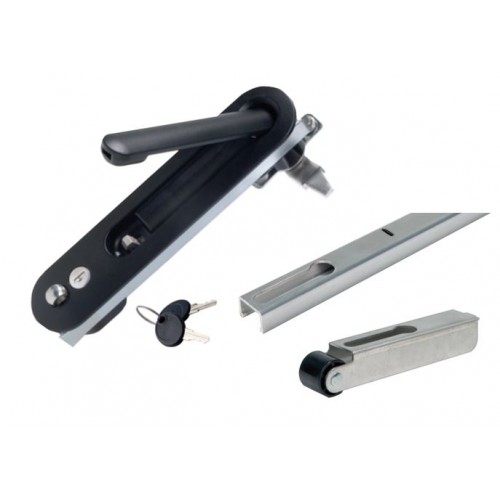

Multi Point Compression Latch System
CR
A low-profile handle, installation flexibility, and adjustable fit provide an attractive look and reliable performance for a variety of telecom, electronics, and industrial enclosures. This heavy duty swing-handle latch design enhances vandal-resistant security and provides three points of engagement for even gasket compression in environmental, EMI, and RFI sealing applications. The versatile options of cam offset offer tremendous flexibility for installation and adjustment.
- 5 mm true center-point compression is a Southco exclusive
- Handle partially recessed into door for a clean enclosure face, pops up for easy access to swing handle, and twists in either direction to release the compression under control and to open the door
- Modular designed rods accommodate door spans up to 2 meters long
- Attractive aesthetics and ergonomic design provide a high-end look and feel
| Part No. | Description | Lock Style | Rotation | Offset | CAD | Quantity | |
| C$-19-11-15 | Swinghandle Actuator | Key Locking CH751 | Universal 180° | - | Download |
|
|
| C$-19-11-25 | Swinghandle Actuator | Key Locking CH751 | Counter-Clockwise 90° | - | Download |
|
|
| C$-19-11-35 | Swinghandle Actuator | Key Locking CH751 | Clockwise 90° | - | Download |
|
|
| C$-19-21-15 | Swinghandle Actuator | Key Locking CH751 (WIth Padlock Hasp) | Universal 180° | - | Download |
|
|
| C$-19-21-25 | Swinghandle Actuator | Key Locking CH751 (WIth Padlock Hasp) | Counter-Clockwise 90° | - | Download |
|
|
| C$-19-21-35 | Swinghandle Actuator | Key Locking CH751 (WIth Padlock Hasp) | Clockwise 90° | - | Download |
|
|
| C$-19-32-15 | Swinghandle Actuator | DIN 18354 | Universal 180° | - | Download |
|
|
| C$-19-32-25 | Swinghandle Actuator | DIN 18354 | Counter-Clockwise 90° | - | Request |
|
|
| C$-19-32-35 | Swinghandle Actuator | DIN 18354 | Clockwise 90° | - | Download |
|
|
| C$-19-44-15 | Swinghandle Actuator | Bellcore Electronics | Universal 180° | - | Download |
|
|
| C$-19-44-25 | Swinghandle Actuator | Bellcore Electronics | Counter-Clockwise 90° | - | Download |
|
|
| C$-19-44-35 | Swinghandle Actuator | Bellcore Electronics | Clockwise 90° | - | Request |
|
|
| CR-50-01-24 | Rod End | - | - | 0 | Download |
|
|
| CR-51-15-24 | Rod End | - | - | +15 | Download |
|
|
| CR-51-30-24 | Rod End | +30 | Download |
|
|||
| CR-52-15-24 | Rod End | - | - | -15 | Download |
|
|
| CR-52-30-24 | Rod End | - | - | -30 | Download |
|
|
| CR-64-1000-50 | Rod | - | - | - | Download |
|
|
| CR-843-01-26 | Rod Guide | - | - | - | Download |
|
|
| CR-846-1000-24 | Cam | - | - | 0 | Download |
|
|
| CR-846-1005-24 | Cam | - | - | 5 | Download |
|
|
| CR-846-1010-24 | Cam | - | - | 10 | Download |
|
|
| CR-846-1015-24 | Cam | - | - | 15 | Download |
|
|
| CR-846-1020-24 | Cam | - | - | 20 | Download |
|
|
| CR-846-1025-24 | Cam | - | - | 25 | Download |
|
|
| CR-846-1030-24 | Cam | - | - | 30 | Download |
|
|
| CR-846-1035-24 | Cam | - | - | 35 | Download |
|
|
| CR-846-1040-24 | Cam | - | - | 40 | Download |
|
|
| CR-846-1045-24 | Cam | - | - | 45 | Download |
|
|
| CR-846-1050-24 | Cam | - | - | 50 | Download |
|
