SOUTHCO

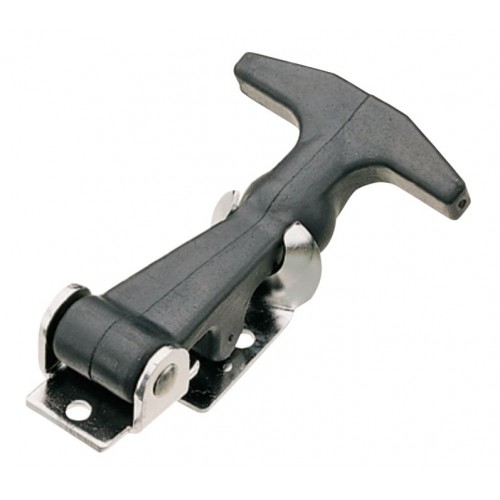

Flexible Draw Latch (T-Handle)
37
These industrial style handles are a very forgiving solution for imperfectly aligned panels in co-planar applications. Their flexible stretch-and-latch design and substantial handgrip area make them easy to engage in field conditions, even with gloved hands
- Multiple sizes and grip styles provide the tension to hold panels tight
- Molded-in mid-handle fulcrum point makes it easier to engage latch connection
- Keepers and mounting brackets may be bolted or welded to panels and frames
- Multiple mounting options accommodate a variety of panel configuration requirements
| Part No. | Size | Material | Keeper Style | Type | CAD | Quantity | |
| 37-10-065-10 | Small | Steel | - | Ship Assembled | Download |
|
|
| 37-10-065-20 | Small | Stainless Steel | - | Ship Assembled | Download |
|
|
| 37-10-071-10 | Medium | Steel | F | Ship Assembled | Download |
|
|
| 37-10-071-20 | Medium | Stainless Steel | F | Ship Assembled | Download |
|
|
| 37-10-072-10 | Medium | Steel | F | Ship Unassembled | Download |
|
|
| 37-10-086-10 | Large | Steel | F | Ship Assembled | Download |
|
|
| 37-10-086-20 | Large | Stainless Steel | F | Ship Assembled | Download |
|
|
| 37-10-087-10 | Large | Steel | F | Ship Unassembled | Download |
|
|
| 37-10-101-10 | Extra Large | Steel | F | Ship Assembled | Download |
|
|
| 37-10-101-20 | Extra Large | Stainless Steel | F | Ship Assembled | Download |
|
|
| 37-10-102-10 | Extra Large | Steel | F | Ship Unassembled | Download |
|
|
| 37-10-131-10 | Extra Large | Steel | F | Ship Assembled | Download |
|
|
| 37-10-131-20 | Extra Large | Stainless Steel | F | Ship Assembled | Download |
|
|
| 37-20-071-10 | Medium | Steel | R | Ship Assembled | Download |
|
|
| 37-20-071-20 | Medium | Stainless Steel | R | Ship Assembled | Download |
|
|
| 37-20-072-10 | Medium | Steel | R | Ship Unassembled | Download |
|
|
| 37-20-086-10 | Large | Steel | R | Ship Assembled | Download |
|
|
| 37-20-086-20 | Large | Stainless Steel | R | Ship Assembled | Download |
|
|
| 37-20-087-10 | Large | Steel | R | Ship Unassembled | Download |
|
|
| 37-20-101-10 | Extra Large | Steel | R | Ship Assembled | Download |
|
|
| 37-20-101-20 | Extra Large | Stainless Steel | R | Ship Assembled | Download |
|
|
| 37-20-102-10 | Extra Large | Steel | R | Ship Unassembled | Download |
|
|
| 37-20-131-10 | Extra Large | Steel | R | Ship Assembled | Download |
|
|
| 37-20-131-20 | Extra Large | Stainless Steel | R | Ship Assembled | Download |
|
