EBERHARD

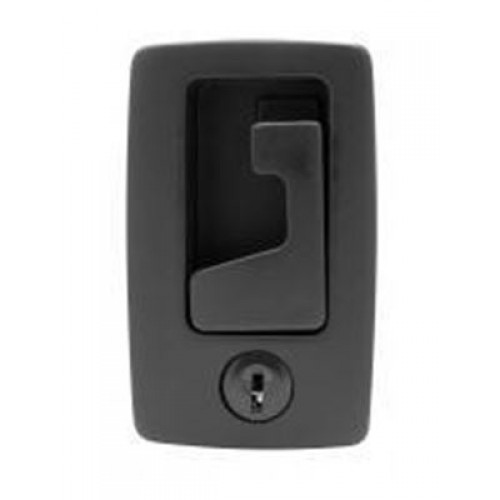

Eclipse Lift & Turn Compression Latch
530
- The Eclipse lift & turn latches feature unique take-up capability, up to 1/8" compression. This enables the door gasket to be compressed against the door when temperature, noise or vibration are important consideration
- The lift & turn latches also offer an adjustable bolt depth for shallow or deep-fitting doors. Up to 1-1/2" adjustment is available
- Produced with UV stabilized thermoplastic and stainless steel components, latch is suitable for extreme applications that deal with water including boats, campers, trailers, or outdoor containers
- Easy installation with the use of the mounting bracket and 2 screws, which are provided. No external fasteners required and no weld marks to mar finish
- Eclipse latches can be assembled on finished panels. An oil-resistant flange gasket is also provided
- Key-locking version is furnished with two keys
| Part No. | Type | Finish | CAD | Quantity | |
| ECL-530-KP8-MB | Key Locking | Matt Black | Request |
|
|
| ECL-530-KP8-MW | Key Locking | Matt White | Request |
|
|
| ECL-530-P8-MB | Non Locking | Matt Black | Request |
|
|
| ECL-530-P8-MW | Non Locking | Matt White | Request |
|
