GRIPWELL

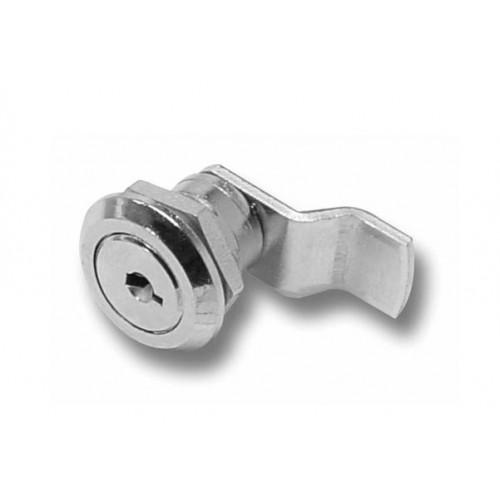

Cylinder Quarter-Turn Latch
B053
- Cylinder quarter-turn with 90° rotation, nut fixing
- Can be used for both RH or LH application
- Pre-assembled quarter-turn can be installed in the recommended cut-out
- All locks supplied with two keys
| Part No. | Housing Material | Type | Key | H Dimension | CAD | Quantity | |
| B053-C20-9207 | Zinc Die, Chrome Plated | Standard Riveted Cam | Keyed Alike | 7.5 | Request |
|
|
| B053-C20-9207-72 | Zinc Die, Chrome Plated | Special, Cam Fixed With C-Clip | Keyed Alike | 7.5 | Request |
|
|
| B053-C20-9208 | Zinc Die, Chrome Plated | Standard Riveted Cam | Keyed Alike | 13.5 | Request |
|
|
| B053-C20-9208-72 | Zinc Die, Chrome Plated | Special, Cam Fixed With C-Clip | Keyed Alike | 13.5 | Request |
|
|
| B053-C20-9209 | Zinc Die, Chrome Plated | Standard Riveted Cam | Keyed Alike | 19.5 | Request |
|
|
| B053-C20-9209-72 | Zinc Die, Chrome Plated | Special, Cam Fixed With C-Clip | Keyed Alike | 19.5 | Request |
|
|
| B053-C20-9210 | Zinc Die, Chrome Plated | Standard Riveted Cam | Keyed Differently | 7.5 | Request |
|
|
| B053-C20-9210-72 | Zinc Die, Chrome Plated | Special, Cam Fixed With C-Clip | Keyed Differently | 7.5 | Request |
|
|
| B053-C20-9211 | Zinc Die, Chrome Plated | Standard Riveted Cam | Keyed Differently | 13.5 | Request |
|
|
| B053-C20-9211-72 | Zinc Die, Chrome Plated | Special, Cam Fixed With C-Clip | Keyed Differently | 13.5 | Request |
|
|
| B053-C20-9212 | Zinc Die, Chrome Plated | Standard Riveted Cam | Keyed Differently | 19.5 | Request |
|
|
| B053-C20-9212-72 | Zinc Die, Chrome Plated | Special, Cam Fixed With C-Clip | Keyed Differently | 19.5 | Request |
|
|
| B053-C20-9220-72 | Matt Black | Special, Cam Fixed With C-Clip | Keyed Alike | 7.5 | Request |
|
|
| B053-C20-9221-72 | Matt Black | Special, Cam Fixed With C-Clip | Keyed Alike | 13.5 | Request |
|
|
| B053-C20-9222-72 | Matt Black | Special, Cam Fixed With C-Clip | Keyed Alike | 19.5 | Request |
|
|
| B053-C20-9223-72 | Matt Black | Special, Cam Fixed With C-Clip | Keyed Differently | 7.5 | Request |
|
|
| B053-C20-9224-72 | Matt Black | Special, Cam Fixed With C-Clip | Keyed Differently | 13.5 | Request |
|
|
| B053-C20-9225-72 | Matt Black | Special, Cam Fixed With C-Clip | Keyed Differently | 19.5 | Request |
|
