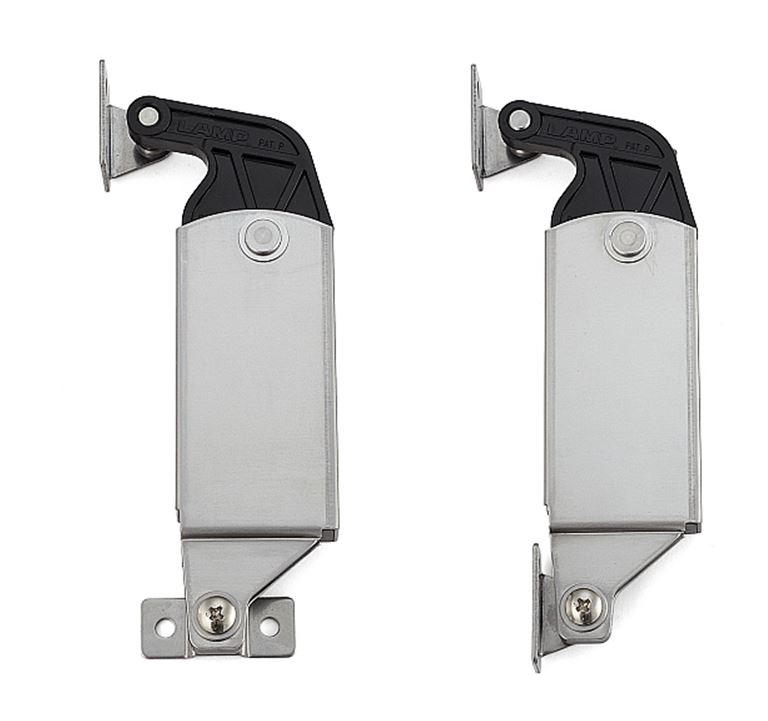

Spring Loaded Lift Assist Stay
S-AT
- Spring mechanism assists in lifting heavy top-opening lid
- Easily holds the lid at any angle (about 10° ~ 80°)
- Compact design maximises space inside of the cabinet
- Side mount and back panel mounts available, both are non-handed
- Can select spring tension hard or soft type depending on lid weight and dimension
- Passed 10,000 life cycle test
| Part No. | Type | Spring Tension | Max. Door Moment (N.m) | CAD | Quantity | |
| S-AT01 | Side Mount | Soft | 6.1 ~ 8.8 | Download |
|
|
| S-AT01S | Back Panel Mount | Soft | 6.1 ~ 8.8 | Download |
|
|
| S-AT02 | Side Mount | Hard | 8.8 ~ 11.8 | Download |
|
|
| S-AT02S | Back Panel Mount | Hard | 8.8 ~ 11.8 | Download |
|
